Warm White 5630 LED Strip lights

Place of Origin: Guangdong,China (Mainland)
Brand Name: Prime
Input: 12V/ 24V
CCT: 2800-3500K
Certificate: CE, RoHS
Watt: 7.2/14.4W per meter
IP: IP20/ IP65
Warranty: 2 years
PCB: 10 mm
Packing: 5meters per reel
LED: Seoul imported 5630LED

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:10.0 USDProduction Capacity:50,000meters a week
Trade Term:FOB,EXWPacking:netual packing
Payment Terms:T/T, WUDelivery Date:7-12days
Min. Order:5 Piece/Pieces
Means of Transport:Ocean, UPS, Air

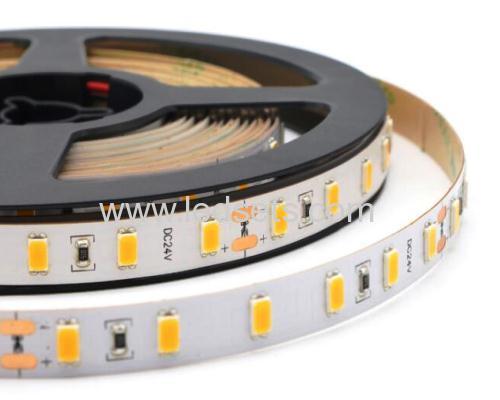

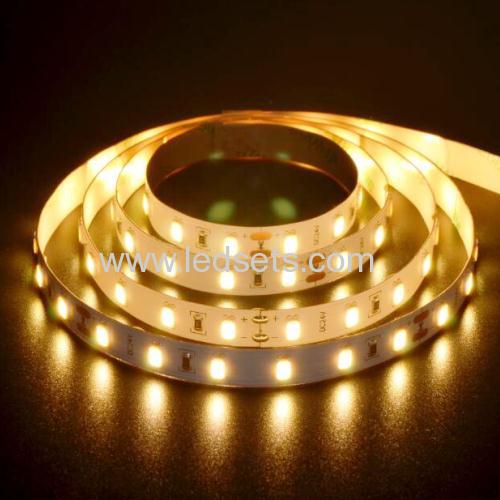

Warm White 5630 LED Strip lights

Warm White 5630 LED Strip lights under cabinet come with 2800-3500K, 5630LED, 30/60leds/M, white PCB, which is terrific for display lighting in cabinet. or back lighting.

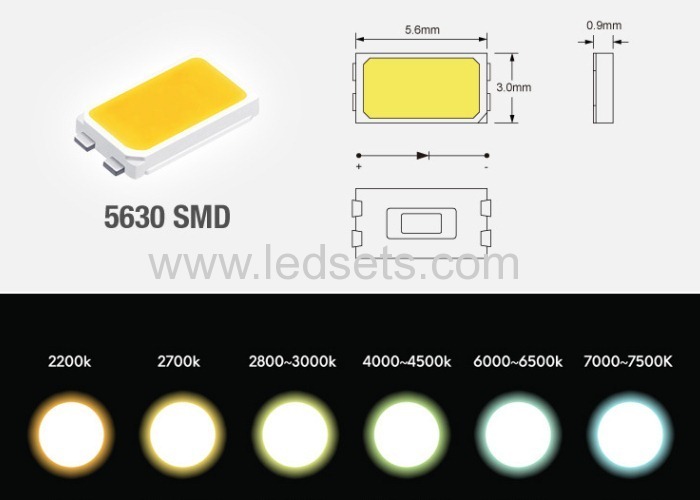

5630LEDs are 50-55 LM each, much brighter over 5050LEDs,


> Dimmable brightness and changeable color as you like;
> Flexible and can be separated in every 3LEDs along cut-edge or re-joint;
> Easy to install with 3M tape on backing or clips;
> Safe application at 12V or 24V;
> No hazards to environment;
> Long lifespan of 50,000 hours.

Warm White LED Strip lights under cabinet are available in 3 varieties:

A) Regular Flex strip, 3M tape on backing, IP20;
B) Water resistance type with an encapsulated plastic Gel, 3M tape on backing, IP66;
C) Water resistance type with a protective Silicone jacket, can be fixed with clips, IP66

Technical Data of Warm White LED Strip lights under cabinet

Part NO. (IP20)

PFS-5630WW30A-12

PFS-5630WW60A-12


PFS-5630WW30B-12PFS-5630WW60B-12

Voltage:

12V or 24V

12V or 24V

Size:

10mm wide, 5 meters a reel

10mm wide, 5 meters a reel

LED Type:

5630SMD

5630SMD

Quantity:

30 LEDs per meter

60 LEDs per meter

Power:

7.2W per meter

14.4W per meter

warm White:

2800-3300K

2800-3300K

PCB in:

Copper, white

Copper, white

Beam Angle:

120 degrees

120 degrees

Expected Life

50,000hours

50,000hours

Warranty:

Two Years

Two Years


FAQ:

1. Can we cut them in short pieces, and re-joint?

Yes, can be cut in every 3 LEDs, minimum, and can re-joint with cables.


2. How Can I make them dimmable or color-changing?

First, you need a power supply (transformer) to convent main voltage to 12V or 24VDC;

Second, get a dimmer or controller from us or your market, wire them follow our instruction, and then power on;

Third, you go


3. How can I do with them to work at 10meter long or more?
