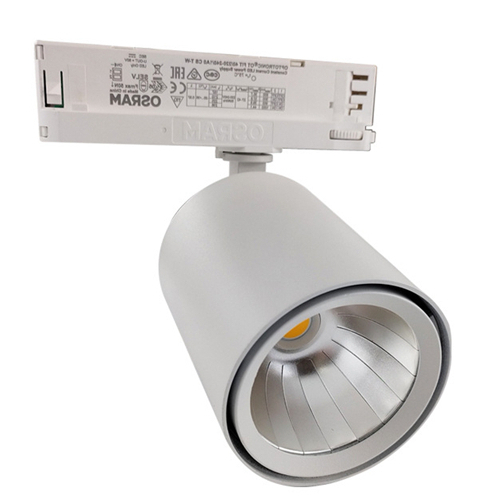

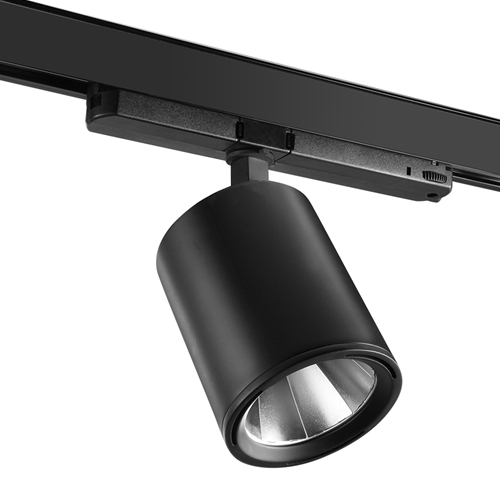

Super bright 30W 35W LED Track Lights 150LM/W
  • Super bright 30W 35W LED Track Lights 150LM/W
  • Super bright 30W 35W LED Track Lights 150LM/W
  • Super bright 30W 35W LED Track Lights 150LM/W
  • Super bright 30W 35W LED Track Lights 150LM/W

Super bright 30W 35W LED Track Lights 150LM/W

30.0 USD
Min. Order:
100 Piece/Pieces
Trade Term:
FOB,EXW
Payment Terms:
T/T
Place of Origin:
Guangdong, China (Mainland)
Means of Transport:
UPS DHL, Ocean, Air
Production Capacity:
5000pcs a week
Packing:
netual
Delivery Date:
10-15days
Brand Name:
Prime
Input:
AC100-240V
Color:
white /warm white
White CCT:
4000/5000K/5700K
warm white CCT:
2700/3000K
CRI:
RA80/90/97
Certificates:
CE RoHS

  • Product Description
  • Related Products
  • Related Links
  • Super bright 30W 35W LED Track Lights Ra90 Ra97

    LED track lighting is a system of small, individual spotlights mounted on a track that uses LED technology.It is generally more expensive than those which use fluorescent bulbs, however,LED technology uses less energy than incandescent and fluorescent bulbs, and lasts for a longer number of hours, which ultimately requires less replacing. Super bright 30W 35W LED Track Lights Ra90 Ra97 150LM/W are with Citizen/ CREE/ BRIDGELUX COB and 3500LM output, they are used very often in clothes outlets and furniture shops.

    DIMMABLE with TRIAC, DALI, 0/1-10V, CCT TUNABLE AND DIM TO WARM are also available

    Reflector Angles are avaialble with 15/24/38/60° (90% reflectivity ) and high Efficency 20/30/45/60° (98% reflectivity).

    Features:

    • Citizen/Cree COB LED with good consistency

    • Luminaire 110 lm/Watt @ CRI80

    • CRI>97, 90, 80 available for 2700K, 3000K, 4000K, 5000K

    • Brushed aluminum body with good heat dissipation

    • Low thermal resistance, low UGR<19

    •  Flicker-free Isolated constant current driver

    • Triac, DALI, 0/1-10V dimming with external driver

    • Very even light distribution, high uniformity and no glare

    •  Instant switch-on regardless of temperature or humidity

    White housing is also available as well as black

    Demension in mm

    High CRI>97, 90, 80 available for 2700K, 3000K, 4000K, 5000K

    15°, 24°, 36°and 60°, beam angles optional

    Details of the light

    Model No.

    PTL-PD30W/35W-D93

    Wattage

    30W/35W

    Current

    800mA/1000mA

    Input Voltage

    AC200-240V / AC100-240V, 50/60Hz

    Output Voltage

    DC 36V

    LED Chip

    CREE COB / CITIZEN Version 6

    CRI

    80+, 90+, 97+

    Color temp.

    2700K -3000K - 4000K - 5000K

    Lamp Efficiency

    105-110 lm/W

    Beam angle

    15° - 24° - 38° - 60° OR 15° - 20° - 30° - 45°- 60°

    UGR

    < 19

    Macadam

    < 3 steps

    SDCM

    < 3

    THD

    < 15%

    PF

    > 0.95

    LED   driver

    Allooking /Global /Powergear

    Dimensions

    Φ93*L131mm

    Housing   material

    Die-Casting Aluminum

    Housing   color

    Black(9011)/White(9016)

    Adapter   phase

    1 phase(2 wires, 3 wires) - 3 phase (4 wires)

    IP   rate

    IP20

    Working temp.

    -20℃ - +45℃

    Lifespan

    50,000 hours

    Color also can do some effect on the merchandise displaying, as well as purchasing psychology. Warm white in 2700k or 3000K is suitable for winter series applicaitons, while 4000k or 5000K is suitable for spring and autumn seasons, and 6000K is good for hot summer day.

    30W 35W LED Track Lights Ra90 Ra97 are ideal for Showrooms, rooms with different ambients, banquets and, in general, large spaces that are always undergoing changes and need specific areas to be well lit.
