Super Bright 35W LED Track Lights 140LM/W
35.0 USD
Min. Order:
100 Piece/Pieces
Trade Term:
FOB,EXW
Payment Terms:
T/T, WU
Place of Origin:
Guangdong, China (Mainland)
Means of Transport:
UPS DHL, Ocean, Air
Production Capacity:
5000pcs a week
Packing:
netual
Delivery Date:
10-15days
Input:
AC 100-240V
Color:
white/warm white
CCT/white:
4000/5000K
CCT/warm white:
2700/3000K
Dim to warm:
1800-3000K
CRI:
RA80/90
Certificates:
CE, ROHS
warranty:
Three Years
- Product Description
- Related Products
- Related Links
-

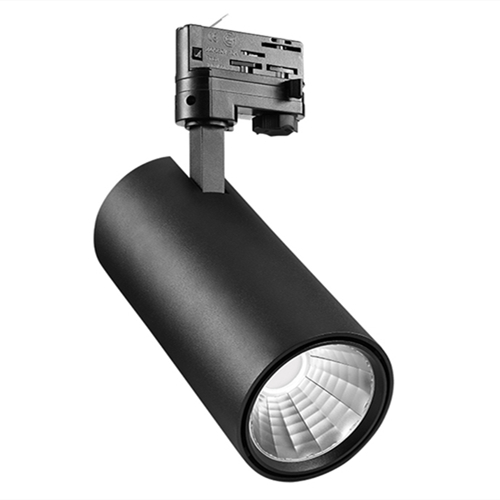

35W LED Track Lights 140LM/W
LED track lighting is a system of small, individual spotlights mounted on a track that uses LED technology.It is generally more expensive than those which use fluorescent bulbs, however,LED technology uses less energy than incandescent and fluorescent bulbs, and lasts for a longer number of hours, which ultimately requires less replacing. 35W LED Track Lights 140LM/W are with Citizen1212 and 140LM/W output, they are used very often in clothes outlets and furniture shops.
15°, 20°, 30°and 60°, beam angles optional
DIMMABLE with TRIAC, DALI, 0/1-10V, CCT TUNABLE AND DIM TO WARM are also available
RA80 OR RA90
Features:
Citizen 1212 COB LED with good consistency
Luminaire 140 lm/Watt @ CRI80
CRI>90, 80 available for 3000K, 4000K, 5000K
Brushed aluminum body with good heat dissipation
Low thermal resistance, low UGR<19
Flicker-free Isolated constant current driver
Very even light distribution, high uniformity and no glare
Instant switch-on regardless of temperature or humidity
White(9016) housing is also avaialble as well as Black(9011)
Details of the light
Model No.
PTL-PD35W-D90
Wattage
35W
Current
1000mA
Input Voltage
AC200-240V / AC100-240V, 50/60Hz
Output Voltage
DC 36V
LED Chip
CITIZEN1212
CRI
80+, 90+
Color temp.
3000K - 4000K - 5000K
Lamp Efficiency
140 lm/W
Beam angle
15° - 20° - 30° - 60° (reflector cup)
UGR
< 19
Macadam
< 3 steps
SDCM
< 3
THD
< 15%
PF
> 0.9
LED driver
BOKE LL
Dimensions
Φ90*L210mm
Housing material
Die-Casting Aluminum
Housing color
Black(9011)/ White(9016)
Adapter phase
1 phase(2 wires, 3 wires) - 3 phase (4 wires)
IP rate
IP20
Working temp.
-20℃ - +45℃
Lifespan
50,000 hours
Color also can do some effect on the merchandise displaying, as well as purchasing psychology. Warm white in 2700k or 3000K is suitable for winter series applicaitons, while 4000k or 5000K is suitable for spring and autumn seasons, and 6000K is good for hot summer day.
35W LED Track Lights 140LM/W RA80 RA90 are ideal for Showrooms, rooms with different ambients, banquets and, in general, large spaces that are always undergoing changes and need specific areas to be well lit.
