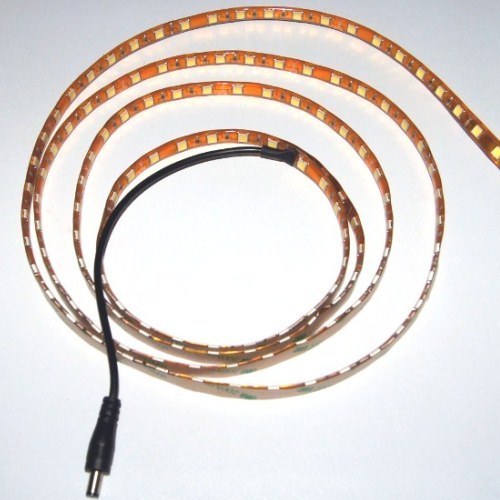

SMD 5050 Waterproof LED Strip lights

Place of Origin: Guangdong,China (Mainland)
Brand Name: Prime
Input: 12V/ 24V
Certificate: CE, RoHS
Watt: 7.2/14.4W per meter
IP: IP65
Warranty: 2 years
PCB: 10 mm
Custom CCT: Acceptable
dimmalbe: YES

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:10.0 USDProduction Capacity:50,000meters a week
Trade Term:FOBPacking:netual packing
Payment Terms:T/T, WUDelivery Date:7-12days
Min. Order:5 Piece/Pieces
Means of Transport:Ocean, UPS, dhl, Air

SMD 5050 Waterproof LED Strip lights
5050 smd Waterproof LED Strip lights
Cooper PCB SMD 5050 Waterproof LED Strip lights 12V are the type most customers ask, they come with 5050SMD, 30/60LEDs/M, 12/24V input, and all single colors are available.


Features:

> Dimmable brightness and changeable color as you like;
> Flexible and can be separated in every 3LEDs along cut-edge or re-joint;
> Easy to install with 3M tape on backing or clips;
> Safe application at 12V or 24V;
> No hazards to environment;
> Long lifespan of 50,000 hours.
SMD 5050 Waterproof LED Strip lights

Prime Cooper PCB 5050 smd Waterproof LED Strip lights 12V led flex stripare available in 3 varieties:


B) Water resistance type with an encapsulated plastic Gel, 3M tape on backing, IP66;
C) Water resistance type with a protective Silicone jacket, can be fixed with clips, IP66
D) Waterproof type with silicone jacket and Gel inside, IP67.

Size of 5050 LED Flex strips:

Technical Data of  SMD 5050 Waterproof LED Strip lights 12V

Part NO. (IP66)

PFS-5050X60B-12

PFS-5050X30B-12

Part NO. (IP66)

PFS-5050X60C-12

PFS-5050X30C-12

Part NO. (IP67)

PFS-5050X60D-12

PFS-5050X30D-12

Voltage:

12V or 24V

12V or 24V

Size:

10mm wide, 5 meters a reel

10mm wide, 5 meters a reel

LED Type:

5050SMD

5050SMD

Quantity:

60 LEDs per meter

30 LEDs per meter

Power:

14.4W per meter

7.2W per meter

Color:

Red, green, blue,yellow, white, warm white, pink, orange

Red, green, blue, yellow, white, warm white, pink, orange

PCB in:

Copper, white or black

Copper, white or black

Beam Angle:

120 degrees

120 degrees

Expected Life

50,000hours

50,000hours

Warranty:

Two Years

Two Years

  1. Can we cut Cooper PCB 5050 smd Waterproof LED Strip lights 12V led flex strip in short pieces, and re-joint?

    Yes, can be cut in every 3 LEDs, minimum, and can re-joint with cables.


2. How Can I make them dimmable or color-changing?

First, you need a power supply (transformer) to convent main voltage to 12V or 24VDC;

Second, get a dimmer or controller from us or your market, wire them follow our instruction, and then power on;

Third, you go¡­

3. How can I do with them to work at 10meter long or more?

If only strips without dimmer or controller, get power in parallel;

How Does a led strip come out?

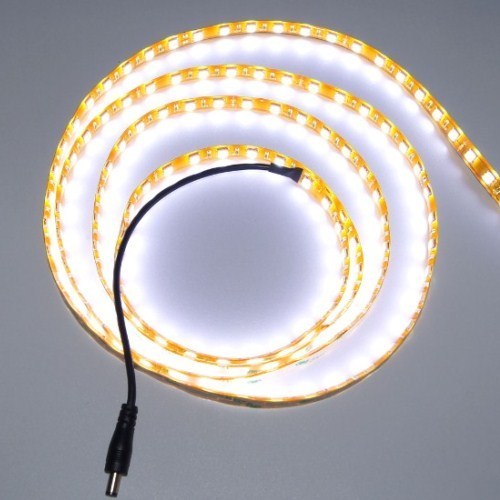

60led/m Warm White LED Strip Lights

If waterproof type with resin cover,

60led/m Warm White LED Strip Lights

How to order samples?

1, Samples are available at your costs;

2, You tell us which items, color and quantity you want, 5pcs as MOQ;

3, I will issue a Performa invoice for the samples order;

4, Production will go, if we do not have the stocks, after your payment by TT / Western Union;

5, Samples will be sent out by DHL or UPS, as you like.

Warranty Terms:

1. Prime LED offers a warranty period of TWO years since the date cargos was shipped out;

2. Prime LED will take the duty, and send free replacements or parts, after our confirmation of the evidence we request, if failure occurs under normal and right application within the period;

3. Prime LED will offer you charged replacements or parts, if failure or damage due to incorrect operation or application.
