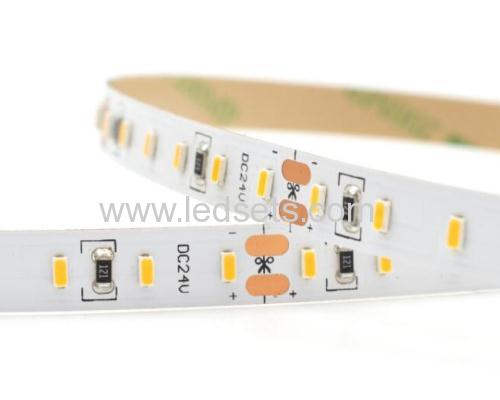

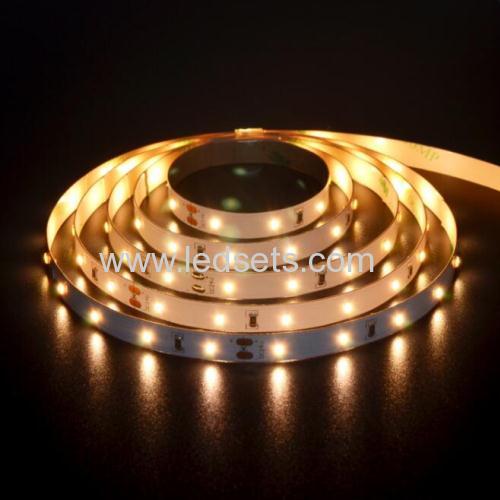

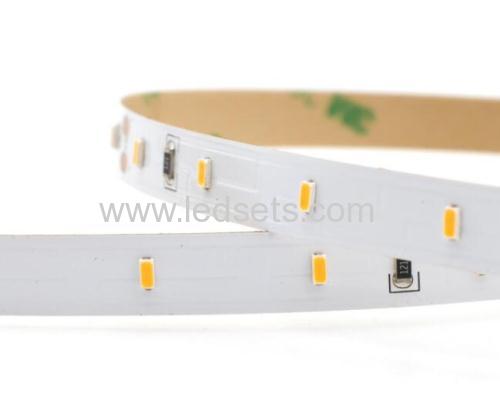

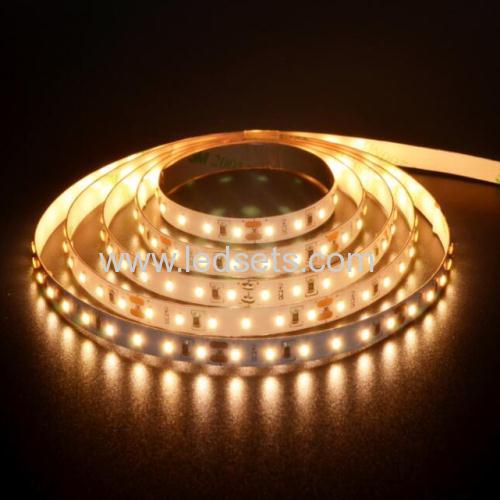

SMD 3014 Waterproof led tape strip lights

Place of Origin: Guangdong,China (Mainland)
Brand Name: Prime
Input: 12V/ 24V
CCT: 2700-3500K
Certificate: CE, RoHS
Watt: 4.8W/ 9.6W per meter
IP: IP20, non-waterproof
Warranty: 2 years
PCB: 8 or 10 mm
Custom CCT: Acceptable
Dimmable: YES

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:1.0 USDProduction Capacity:50,000meters a week
Trade Term:FOBPacking:netual packing
Payment Terms:T/T, WUDelivery Date:7-12days
Min. Order:5 Piece/Pieces
Means of Transport:Ocean, UPS, Air

SMD 3014 Waterproof led tape strip lights

SMD 3014 Waterproof led tape strip lights 6W 12W suppliers led strip lightsare avialable in

B) Water resistance type with an encapsulated plastic Gel, 3M tape on backing, IP66;
C) Water resistance type with a protective Silicone jacket, can be fixed with clips, IP66
D) Waterproof type with silicone jacket and Gel filled, IP67.

60/70/120LEDs/M, 12/24V input, 10-12LM per SMD, brighter over 3528leds,  as well as slim and flexible PCB, SMD 3014 Waterproof led tape strip lights are terrific for decoration and DIY use, such as signage, channel letters, backlighting, panel edge lighting, under cabinet lighting, landscapes, step and stairs, motorcycle and automotive lighting, marine and recreational vehicle, retail and display case lighting, glass art, home theaters, media rooms and more.


Now, Prime LED offers you white PCB, white and warm white, however, if you have specifc needs for PCB or colors, we can produce as well.


> Dimmable brightness and changeable color as you like;

> Flexible and can be separated in every 3LEDs along cut-edge or re-joint;
> Easy to install with 3M tape on backing or clips;
> Safe application at 12V or 24V;
> No hazards to environment;
> Long lifespan of 50,000 hours.


60led/m

120led/m

Technical Data:

Part NO. (IP20)

PFS-3014W60X-12

PFS-3014W70X-12

PFS-3014W120X-12

Voltage:

12V or 24V

12V or 24V

12V or 24V

Size:

8mm wide

8mm wide

8mm wide

LEDType:

3014SMD

3014SMD

3014SMD

Quantity:

60LEDs per meter

70LEDs per meter

120LEDs per   meter

Power:

6W per meter

6W per meter

12W per meter

White/ Warm   white:

2800-3300K/ 5500-6500K

PCB in:

White PCB

Beam Angle:

120degrees

Expected Life

50,000hours

Warranty:

Two Years

FAQ:

1. Can we cut them in short pieces, and re-joint?

Yes, can be cut in every 3 LEDs, minimum, and can re-joint with cables.


2. How Can I make them dimmable or color-changing?

First, you need a power supply (transformer) to convent main voltage to 12V or 24VDC;

Second, get a dimmer or controller from us or your market, wire them follow our instruction, and then power on;

Third, you go


3. How can I do with them to work at 10meter long or more?
