Prime LED Co.,Ltd.
High Density 1808 LED strip lights 24V 720LED, China High Density 1808 LED strip lights 24V 720LED Manufacturer
|
| Place of Origin: | Guangdong,China (Mainland) |
| Brand Name: | Prime |
| Input: | 24V |
| Certificate: | CE, RoHS |
| Watt: | 20W per meter |
| IP: | IP20, non-waterproof |
| Warranty: | 3 years |
| PCB: | 8 or 10 mm |
| Packing: | 5meters per reel |
| Custom Requirments: | YES |
| LED: | 1808 smd led |
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 2.0 USD | Production Capacity: | 50,000meters a week |
| Trade Term: | FOB,EXW | Packing: | netual packing |
| Payment Terms: | T/T, WU | Delivery Date: | 7-12days |
| Min. Order: | 5 Piece/Pieces | ||
| Means of Transport: | Ocean, UPS, Air | ||

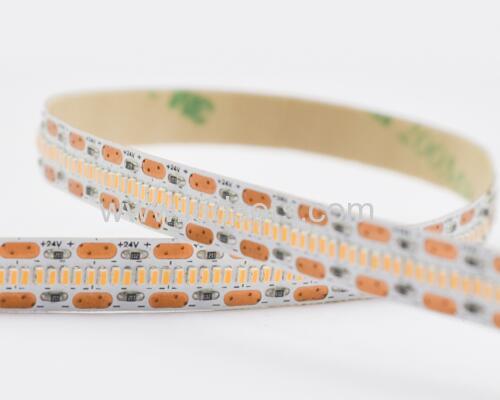

High Density 1808 LED strip lights 24V 720LED
With 720pcs super bright 1808 SMD LEDs and 20W per meter, mounted in high density on a 8mm or 10mm wide PCB, High Density 1808 LED strip lights 24V 720LED is very much suitable for back lighting and general lighting in aluminum frames or under cabinet, with 100LM per watt but without lighting spots.
White and warm white in 2400-2600K, 2600-2800K, 2900-3100K, 3300-3700K, 3800-4200K, 5000-5500K, 6000-6500K
Ra90-95
Product Features
SMD1808 LED package with pure copper LED frame and pure gold encapsulation, ensure lasting quality in fixtures;
SMD1808 LED with high CRI＞95, SDCM<3 and R9＞90, offers a good color consistency and full color temperature ranges;
SMD1808 LED has small size 1.8*0.8mm, smaller than the current popular SMD2210 and 2216;
High density on PCB, no lighting spot, can make maximum 720leds/meter for single row.

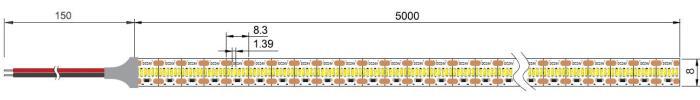

Demansion of High Density 1808 LED strip lights 24V 720LED, 8mm pcb

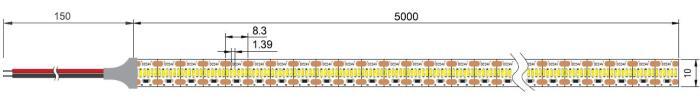

High Density 1808 LED strip lights 24V 720LED, 10mm pcb
Details of the led strip lights
Item | High Density 1808 LED strip lights 24V 720LED |
Part NO | PFS-1808W720A-24 |
Voltage: | 24V |
Size: | 8mm or 10mm PCB and 5 meters/ reel |
LED Type: | 1808 SMD LED, 100LM/W |
Quantity: | 720LEDs per meter |
Power: | 20W |
Color in: | 2400-2600K, 2600-2800K, 2900-3100K, 3300-3700K, 3800-4200K, 5000-5500K, 6000-6500K |
CRI: | Ra90-95 |
PCB in: | Copper, white or black |
Beam Angle: | 120degrees |
Expected Life | 50,000hours |
Warranty: | Three Years |
As high density, the LED strip lights are requested careful Installing.
How to install led strip lights?
