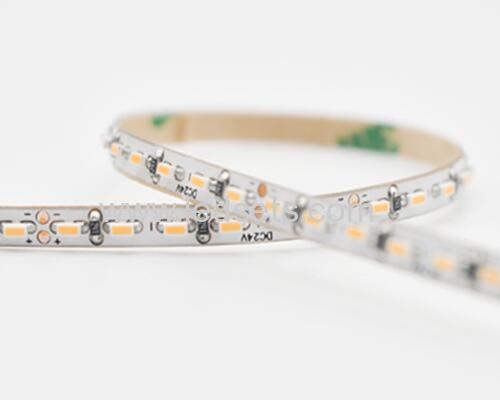

High Density 1808 LED strip lights 24V 240LED

With super bright and quality 1808 SMD LEDs mounted in high density on a slim PCB, even 3mm or 4mm, High Density 1808 LED strip lights 24V 240LED is very much suitable for back lighting and general lighting in aluminum frames or under cabinet, with 100LM per watt but without lighting spots.
White and warm white in 2400-2600K, 2600-2800K, 2900-3100K, 3300-3700K, 3800-4200K, 5000-5500K, 6000-6500K
Ra95
Product Features
SMD1808 LED package with pure copper LED frame and pure gold encapsulation, ensure lasting quality in fixtures;
SMD1808 LED with high CRI>95, SDCM<3 and R9>90, offers a good color consistency and full color temperature ranges;

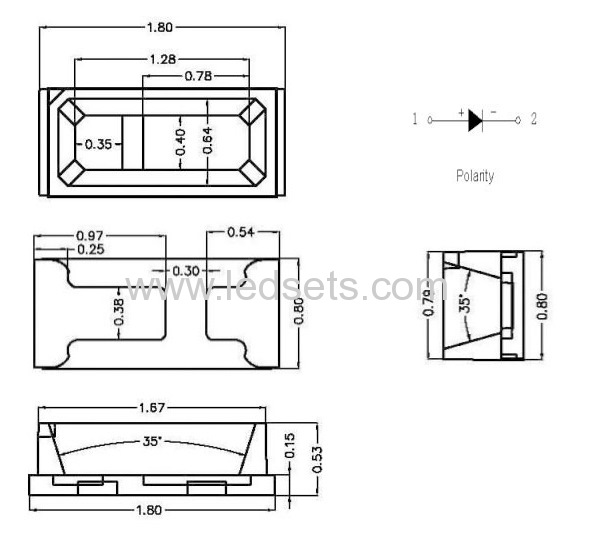

SMD1808 LED has small size 1.8*0.8mm, smaller than the current popular SMD2210 and 2216;
High density on PCB, no lighting spot, can make maximum 720leds/meter for single row.


High Density 1808 LED strip lights 24V 240LED, 3mm pcb


High Density 1808 LED strip lights 24V 240LED, 4mm pcb


High Density 1808 LED strip lights 24V 240LED, 10mm pcb


Details of the led strip lights
Item | High Density 1808 LED strip lights 24V 240LED |
---|
Part NO | PFS-1808W240A-24 |
---|
Voltage: | 24V |
---|
Size: | 3mm, 4mm, or 10mm PCB and 5 meters/ reel |
---|
LED Type: | 1808 SMD LED, 100LM/W |
---|
Quantity: | 240LEDs per meter |
---|
Power: | 8W, 10W and 19.2W per meter for different width PCB |
---|
Color in: | 2400-2600K, 2600-2800K, 2900-3100K, 3300-3700K, 3800-4200K, 5000-5500K, 6000-6500K |
---|
CRI: | Ra95 |
---|
PCB in: | Copper, white or black |
---|
Beam Angle: | 120degrees |
---|
Expected Life | 50,000hours |
---|
Warranty: | Three Years |
---|
As high density, the LED strip lights are requested careful Installing.

How to install led strip lights?
