Dimmable LED Panel 60x60
  • Dimmable LED Panel 60x60

Dimmable LED Panel 60x60

20.0 USD
Min. Order:
4 Piece/Pieces
Trade Term:
FOB,EXW
Payment Terms:
T/T, WU
Place of Origin:
Guangdong, China (Mainland)
Means of Transport:
UPS/ DHL, Ocean, Air
Production Capacity:
5000pcs a week
Packing:
netual box
Delivery Date:
10-15days
Input:
100-240V
LED:
Cree/Citizen
Driver:
Philips
Warranty:
Three Years
CCT:
2700/3000/4000/5000K

  • Product Description
  • Related Products
  • Related Links
  • Dimmable LED Panel 60x60

    Dimmable LED Panel 60x60

    Dimmable LED Panel 60x60 are available in 36W, 48W and 54W with 100LPW with Epistar 0.2W LED, they are provided in DALI, 1-10V and TRAIC dimming system, optional,as the equivalent to conventional grid panel light with fluorescent T8 tubes fixture.


    There are three colour/Kelvin options

    6000-6500K– Ideal for kitchens, workshops, medical areas where a higher intensity, cleaner light is required.

    4000-4500K– Ideal for offices, corridors, kitchens.Most popular kelvin as closest to fluorescent.

    2700-3200K– Idea for Areas where reduced intensity lighting is needed. Looks good in all of the above and gives a warmer glow with the same level of light.


    Size of the lights

    Features of 36W flat LED panel light China


    1. Save 70% on the electricity bill and maintenance cost;

    2. Long life to 40,000hours;

    3. No delay to light on;

    4. No UV or IR radiation, NO mercury;

    5. 6063 Aluminum alloy housing and Optical PMMA cover;

    6. 5 years Guaranteed

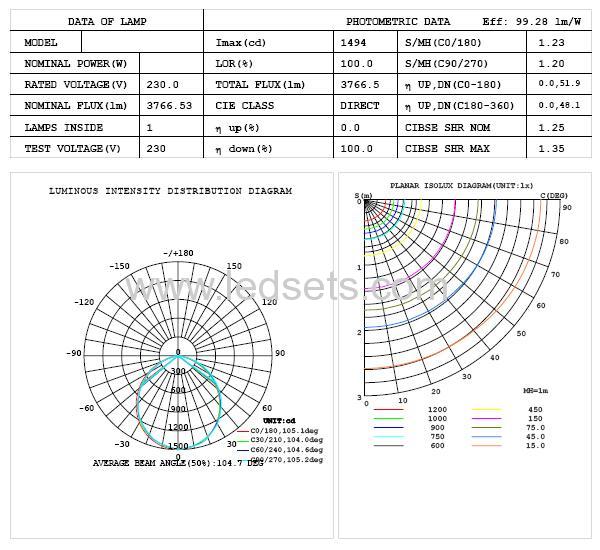

    Test report of 36W flat LED panel light China



    Specification of 36W flat LED panel light China

    ItemDimmable LED Panel 60x60

    Part No.

    PPL-6060-36W

    PPL-6060-48W

    PPL-6060-54W

    Size

    600*600mm

    600*600mm

    600*600mm

    Thickness

    10mm

    10mm

    10mm

    Power

    36W

    48W

    54W

    Lumens Output

    3600LM

    4800LM

    5200LM

    Color

    Warm white-2800-3500K,  Natural white-4000-4500K,

    White-5000-5500K,  Cold white-6000-6500K

    LED

    Epistar 0.2W 2835 SMD

    LED Qty

    192pcs 2835SMD

    242pcs 2835SMD

    288pcs 2835SMD

    Input Voltage

    110-270V,50~60Hz

    110-270V,50~60Hz

    110-270V,50~60Hz

    PF

    0.95

    0.95

    0.95

    CRI

    Ra80

    Ra80

    Ra80

    Beam Angle

    120

    120

    120

    Lifespan

    50,000hours

    50,000hours

    50,000hours

    Operating

    -20~65 degrees Celsius

    -20~65 degrees Celsius

    -20~65 degrees Celsius


    Indoor Use, IP42

    Indoor Use,IP42

    Indoor Use,IP42

    How to install 60*60CM LED Panel lights:?


    Please avoid the conditions of corrosion or discoloration which might lower solderability or affect optical characteristics, as well as rapid transition in ambient temperature, especially in high humidity environments where condensation may occur.

    1. recessed
     40/ 48/ 54W 620*620mm LED Panel Light

    2. hang with wires

     40/ 48/ 54W 620*620mm LED Panel Light
