130LM/W 20W 25W LED track spots
  • 130LM/W 20W 25W LED track spots
  • 130LM/W 20W 25W LED track spots
  • 130LM/W 20W 25W LED track spots
  • 130LM/W 20W 25W LED track spots

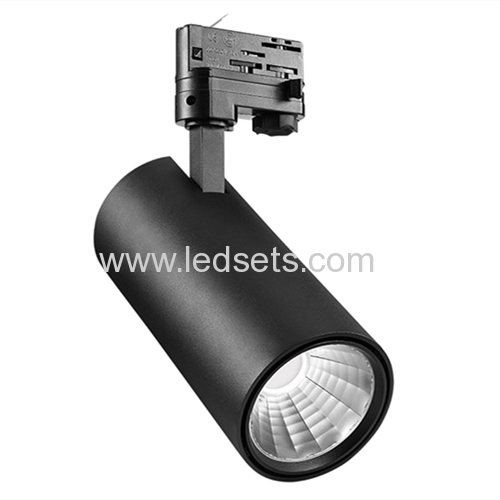

130LM/W 20W 25W LED track spots

20.0 USD
Min. Order:
100 Piece/Pieces
Trade Term:
FOB,EXW
Payment Terms:
L/C, T/T, WU
Place of Origin:
Guangdong, China (Mainland)
Means of Transport:
Ocean, Air, Land
Production Capacity:
5000pcs a week
Packing:
netual
Delivery Date:
10-15days
Input:
AC100~240V 50/60Hz
Color Temperature(K):
3000-4000-5000K
LED Qty:
One COB LED
CRI:
RA80/90
Lifespan:
50,000Hrs
Certificates:
CE RoHS
Warranty:
Three years

  • Product Description
  • Related Products
  • Related Links
  • 130LM/W 20W 25W LED track spots

    LED track lighting is a system of small, individual spotlights mounted on a track that uses LED technology.It is generally more expensive than those which use fluorescent bulbs, however,LED technology uses less energy than incandescent and fluorescent bulbs, and lasts for a longer number of hours, which ultimately requires less replacing. 130LM/W 20W 25W LED track spots are with COB LED and intergrated driver, they are used very often in clothes outlets and furniture shops.

    DIMMABLE with TRIAC, 0/1-10V and DALI system

    130-150LM/W, comply with ERP requirments

    Features:

    Custom COB LED with good consistency

    CRI>90, 80 available for 2700K, 3000K, 4000K, 5000K

    ADC12 Die-casting aluminum body with good heat dissipation

    Low thermal resistance, low UGR<19

     Flicker-free Isolated constant current driver

    Very even light distribution, high uniformity and no glare

     Instant switch-on regardless of temperature or humidity

    Size in mm of the track spot

    White housing is also avaialble as well as black

    High CRI>90, 80 available for 2700K, 3000K, 4000K, 5000K

    15°, 24°, 36°and 45°, beam angles optional

    20W testing report

    Details of the light

    ITEM

    130LM/W 20W 25W LED track spots

    Model No.

    PTL-20W-D80S

    PTL-25W-D80S

    Wattage

    20W

    25W

    Current

    500mA

    600mA

    Output Voltage

    DC 36V

    DC 36V

    Input Voltage

    AC200-240V / AC100-240V, 50/60Hz

    AC200-240V / AC100-240V, 50/60Hz

    LED Chip

    Custom COB

    Custom COB

    Fixture Efficiency

    130-150 lm/W

    130-150 lm/W

    Fixture output

    2,600-3,000LM

    3,250-3,750LM

    CRI

    80+, 90+

    80+, 90+

    Color temp.

    2700K -3000K - 4000K - 5000K

    2700K -3000K - 4000K - 5000K

    Beam angle

    15° - 24° - 38° - 45°

    15° - 24° - 38° - 45°

    UGR

    < 19

    < 19

    Macadam

    < 3 steps

    < 3 steps

    SDCM

    < 3

    < 3

    THD

    < 15%

    < 15%

    PF

    > 0.95

    > 0.95

    Dimensions

    Φ80*L100mm

    Φ80*L100mm

    Housing material

    Die-Casting Aluminum

    Die-Casting Aluminum

    Housing color

    Black/ White

    Black/ White

    Adapter phase

    3 phase (4 wires)

    3 phase (4 wires)

    IP rate

    IP20

    IP20

    Working temp.

    -20℃ - +45℃

    -20℃ - +45℃

    Lifespan

    50,000 hours

    50,000 hours

    They are ideal for Showrooms, rooms with different ambients, banquets and, in general, large spaces that are always undergoing changes and need specific areas to be well lit.

    Color also can do some effect on the merchandise displaying, as well as purchasing psychology. Warm white in 2700k or 3000K is suitable for winter series applicaitons, while 4000k or 5000K is suitable for spring and autumn seasons, and 6000K is good for hot summer day.
