Constant Current LED strip lights 2835LED 10M 15M 20M
  • Constant Current LED strip lights 2835LED 10M 15M 20M
  • Constant Current LED strip lights 2835LED 10M 15M 20M

Constant Current LED strip lights 2835LED 10M 15M 20M

10.0 USD
Min. Order:
100 Piece/Pieces
Trade Term:
FOB,EXW
Payment Terms:
T/T
Place of Origin:
Guangdong, China (Mainland)
Means of Transport:
Ocean, Air
Production Capacity:
5000pcs a week
Packing:
netual
Delivery Date:
10-15days
Brand Name:
Prime
LED:
2835 SMD
CRI:
Ra90
Input:
24V DC
Output:
20-22LM
CCT warm white:
3000-3200K
NW:
4000-4500K
CCT-white:
5500-6500K
Certificates:
CE RoHS
warranty:
2years

  • Product Description
  • Related Products
  • Related Links
  • Constant Current LED strip light 2835LED10M 15M 20M

    Regular LED strip lights will come with voltage drop, from begining to the end, by and by, so brightness of the LED will be less output, fromer meters over latter ones.Constant Current LED strip light 2835LED 10M 15M 20M are with constant current IC, to ensure same current on all LEDs and same brightness for all meters, when they connected in long run.


    They are extremly suiteable for under cabinet lighting at passageway and living room, or similar like that.


    3 types for options: 10meters, 15meters and 20meters


    Constant Current for the whole strip lights with the IC

    60LED/M, Ra90

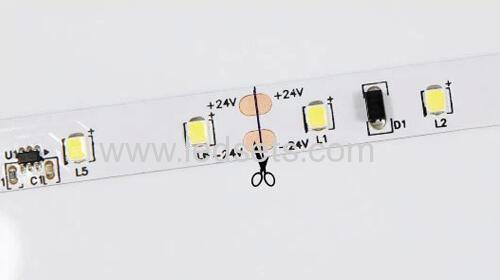

    can be cut for the needs

    2800-3200K, 4000-45000K and 6000-6500K

    Details of the led lights

    Item

    Constant Current LED strip lights 2835LED   10M 15M 20M

    Part NO. (IP20)

    PFS-CC2835W60A-24-10M/15M/20M

    Max.length

    10meters

    15meters

    20meters

    Voltage:

    24VDC

    24VDC

    24VDC

    PCB:

    10mm wide, white

    10mm wide, white

    10mm wide, white

    LED Type:

    2835 SMD

    2835 SMD

    2835 SMD

    Output:

    20-24 LM each

    20-24 LM each

    20-24 LM each

    CRI:

    Ra90

    Ra90

    Ra90

    Quantity:

    60 LEDs /M

    60 LEDs /M

    60 LEDs /M

    Power:

    12.5W/M

    10.5W/M

    8.5W/M

    CCT:

    2800-3300K/ 4000-4500K, 6000-6500K

    Beam Angle:

    120degrees

    120degrees

    120degrees

    Expected Life

    50,000hours

    50,000hours

    50,000hours

    Warranty:

    Two Years

    Two Years

    Two Years

    Insatllation:
