620*620mm LED Panel Lights

Place of Origin: Guangdong,China (Mainland)
Brand Name: Prime
Input: 110-270V,50~60Hz
Color: White/warm white
CCT: 3000/4000/6000K
CRI: Ra80
Angle: 120deg.
Certificates: CE, RoHS UL
Warranty: two years

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:40.0~60.0 USDProduction Capacity:3000pcs a week
Trade Term:FOBPacking:netual
Min. Order:2 Piece/PiecesDelivery Date:10-15days
Means of Transport:UPS DHL, Ocean, Air

620*620mm LED Panel Lights


2835SMD 36W 48W 54W 620*620mm LED Panel Lights, Ra80
36W 48W 54W 620*620mm LED Panel Lights comes orignal LumenMax 2835SMD, from Taiwan, or HONGLI 2835SMD,with CRI of Ra80, about 70-80LM per watt, LED panel lights are nice as the replacement of T8 tubes fixture.

Features:

1. Save 60-70% on the electricity bill and maintenance cost;

2. Long life to 40,000hours;

3. No delay to light on;

4. No UV or IR radiation, NO mercury;

5. Aluminum alloy housing and Optical PMMA cover;

6. Two years Guaranteed

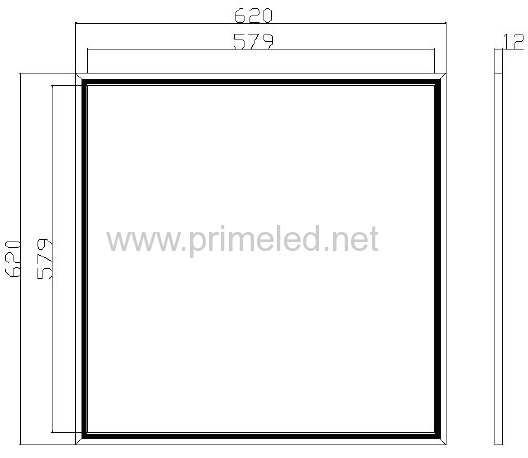

 Size of 36W 48W 54W 620*620mm LED Panel Lights Ra80


Specification of  36W 48W 54W 620*620mm LED Panel Lights

Part No.

PPL-6262-36W

PPL-6262-48W

PPL-6262-54W

Size

620*620mm

620*620mm

620*620mm

Thickness

12mm

12mm

12mm

Power

36W

48W

54W

Lumens Output

2700-2900LM

3600-3800LM

4200-5000LM

Color

Warm white-2800-3500K,  Natural white-4000-4500K,

White-5000-5500K,  Cold white-6000-6500K

LED

LumenMax / HONGLI 2835SMD

LED Qty

192pcs 2835SMD

242pcs 2835SMD

288pcs 2835SMD

Input Voltage

110-270V,50~60Hz

110-270V,50~60Hz

110-270V,50~60Hz

PF

0.95

0.95

0.95

CRI

Ra80

Ra80

Ra80

Beam Angle

120

120

120

Lifespan

50,000hours

50,000hours

50,000hours

Operating Temperature

-20~65 degrees Celsius

-20~65 degrees Celsius

-20~65 degrees Celsius


Indoor Use, IP42

Indoor Use,IP42

Indoor Use,IP42



Lumiance distibution of 36W 48W 54W 620*620mm LED Panel Lights

How to intall LED panel lights?

Please avoid the conditions of corrosion or discoloration which might lower solderability or affect optical characteristics, as well as rapid transition in ambient temperature, especially in high humidity environments where condensation may occur.

1. recessed
 40/ 48/ 54W 620*620mm LED Panel Light
2. hang with wires
 40/ 48/ 54W 620*620mm LED Panel Light



how to make a led light panel?


As we source LEDs for the panel lights originally from Samsung, LumenMax and HONGLI, so NO packaging and sorting jobs in Prime LED's.

36/42/48/54W 600*600mm LED Panel Light
36/42/48/54W 600*600mm LED Panel Light


How to order samples?

1, Samples are available at your costs;

2, You tell us which items, color and quantity you want, 5pcs as MOQ;

3, I will issue a Performa invoice for the samples order;

4, Production will go, if we do not have the stocks, after your payment by TT / Western Union;

5, Samples will be sent out by DHL or UPS, as you like.

Warranty Terms:

1. Prime LED offers a warranty period of TWO years since the date cargos was shipped out;

2. Prime LED will send free replacements or parts, after our confirmation of the evidence we request, if failure occurs under normal and right application within the period;

3. Prime LED will offer you charged replacements or parts, if failure or damage due to incorrect operation or application.

Category: Eco LED Panels

Related Category: RGB LED panels  Dimmable LED panels  Super LED Panels
