Welcome to Prime LED Co.,Ltd.!
620*620mm LED Panel Light
  • 620*620mm LED Panel Light
  • 620*620mm LED Panel Light
  • 620*620mm LED Panel Light

620*620mm LED Panel Light

40.0 USD
Min. Order:
2 Piece/Pieces
Trade Term:
FOB,EXW
Payment Terms:
T/T
Place of Origin:
Guangdong, China (Mainland)
Means of Transport:
UPS DHL, Ocean, Air
Production Capacity:
3000pcs a week
Packing:
netual
Delivery Date:
10-15days
Brand Name:
Prime
Input:
110-270V,50~60Hz
Color:
White/warm white
CCT:
3000/4000/6000K
CRI:
Ra80
Angle:
120deg.
Certificates:
CE, RoHS UL
Warranty:
two years

  • Product Description
  • Related Products
  • Related Links
  • 620*620mm LED Panel Light
    620*620mm LED Panel Light
    620*620mm LED Panel Light comes with super bright 0.5W HC 2835 LED and 110LPW or 120LPW, as well as no flicking LED driver, which is welcomed as general lighting for school, hospitals, hotels, office buildings, shopping mall, museums, libaries and so on.


    Also available with Philips LED driver, 5 years warranty


    UGR<19


    Ra80


    Features:

    1. Save 70% on the electricity bill and maintenance cost;

    2. Long life to 40,000hours;

    3. No delay to light on;

    4. No UV or IR radiation, NO mercury;

    5. Aluminum alloy housing and Optical PMMA cover;

    6. Three years Guaranteed

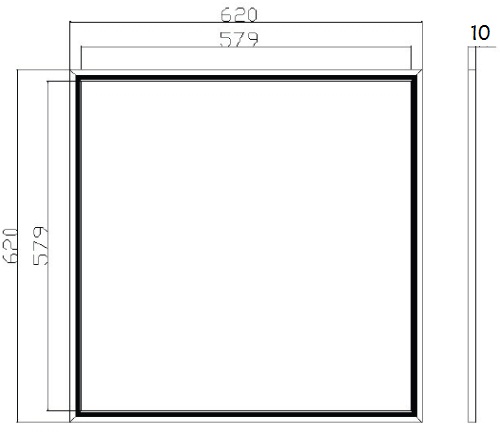

    Size in mm of the led panels

    Specification of 36W 48W 620*620mm LED Panel Light

    Part No.

    PPL-6262-36W

    PPL-6262-48W

    Size

    620*620mm

    620*620mm

    Thickness

    10mm

    10mm

    Power

    36W

    48W

    Lumens Output

    4000LM

    5200LM

    LED Qty

    192pcs 2835SMD

    216pcs 2835SMD

    Efficiency

    110LPW

    110LPW

    CCT

    Warm white-2800-3500K,  Natural white-4000-4500K,

    White-5000-5500K,  Cold white-6000-6500K

    Input Voltage

    110-270V,50~60Hz

    110-270V,50~60Hz

    CRI

    Ra80

    Ra80

    Beam Angle

    120

    120

    Lifespan

    50,000hours

    50,000hours

    Operating

    -20~65 degrees Celsius

    -20~65 degrees Celsius


    Indoor Use, IP42

    Indoor Use,IP42

    How to intall LED panel lights?

    Please avoid the conditions of corrosion or discoloration which might lower solderability or affect optical characteristics, as well as rapid transition in ambient temperature, especially in high humidity environments where condensation may occur.

    1. recessed
     40/ 48/ 54W 620*620mm LED Panel Light
    2. hang with wires
     40/ 48/ 54W 620*620mm LED Panel Light

    how to make a led light panel?

    As we source LEDs for the panel lights originally from Samsung, LumenMax and HONGLI, so NO packaging and sorting jobs in Prime LED's.

    36/42/48/54W 600*600mm LED Panel Light
    36/42/48/54W 600*600mm LED Panel Light


    How to order samples?

    1, Samples are available at your costs;

    2, You tell us which items, color and quantity you want, 5pcs as MOQ;

    3, I will issue a Performa invoice for the samples order;

    4, Production will go, if we do not have the stocks, after your payment by TT / Western Union;

    5, Samples will be sent out by DHL or UPS, as you like.

    Warranty Terms:

    1. Prime LED offers a warranty period of TWO years since the date cargos was shipped out;

    2. Prime LED will send free replacements or parts, after our confirmation of the evidence we request, if failure occurs under normal and right application within the period;

    3. Prime LED will offer you charged replacements or parts, if failure or damage due to incorrect operation or application.
