60led 3014 White LED strip lights 12V
  • 60led 3014 White LED strip lights 12V
  • 60led 3014 White LED strip lights 12V
  • 60led 3014 White LED strip lights 12V

60led 3014 White LED strip lights 12V

1.0 USD
Min. Order:
5 Piece/Pieces
Trade Term:
FOB,EXW
Payment Terms:
T/T, WU
Place of Origin:
Guangdong, China (Mainland)
Means of Transport:
Ocean, UPS, Air
Production Capacity:
50,000meters a week
Packing:
netual packing
Delivery Date:
7-12days
Brand Name:
Prime
Input:
12V/ 24V
CCT:
2700-3500K
Certificate:
CE, RoHS
Watt:
4.8W/ 9.6W per meter
IP:
IP20, non-waterproof
Warranty:
2 years
PCB:
8 or 10 mm
Custom CCT:
Acceptable
Dimmable:
YES

  • Product Description
  • Related Products
  • Related Links

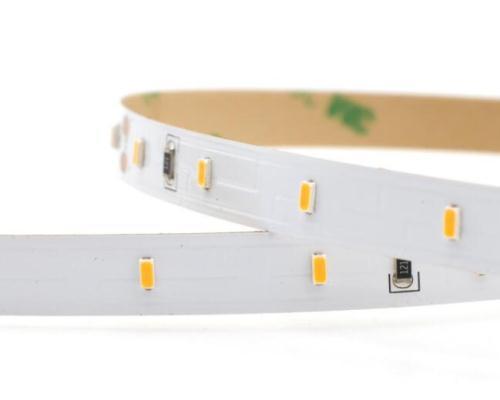

  • 3014 White LED strip lights 12V

    3014LEDs with 10-12LM each, have more output over 3528LEDs, 6-7LM,  as well as small size, SMD 3014 White LED strip lights 12V white PCB 60 70 120LEDs per meter are welcomed very much, due to reasonable prices and high quality. they comes with 3014SMD, 60/70/120LEDs/M, 12/24V input, 10-10LM per SMD,  as well as slim and flexible PCB, which is terrific for decoration and DIY use.

    > Dimmable brightness and changeable color as you like;
    > Flexible and can be separated in every 3LEDs along cut-edge or re-joint;
    > Easy to install with 3M tape on backing or clips;
    > Safe application at 12V or 24V;
    > No hazards to environment;
    > Long lifespan of 50,000 hours.

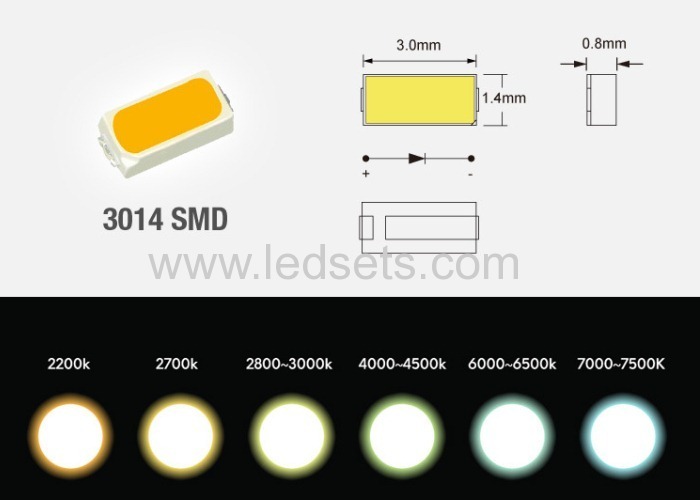

    Size of the SMD 3014 White or Warm white LED strip lights 12V

    SMD 3014 White LED strip lights 12V are available in four varieties:

    A) Regular Flex strip, 3M tape on backing, IP20;
    B) Water resistance type with an encapsulated plastic Gel, 3M tape on backing, IP66;
    C) Water resistance type with a protective Silicone jacket, can be fixed with clips, IP66
    D) Waterproof type with silicone jacket and Gel inside, IP67.
    Technical Data:

    Part NO. (IP20)

    PFS-3014W60A-12

    PFS-3014W70A-12

    PFS-3014W120A-12

    Voltage:

    12V or 24V

    12V or 24V

    12V or 24V

    Size:

    8mm wide

    8mm wide

    8mm wide

    LEDType:

    3014SMD

    3014SMD

    3014SMD

    Quantity:

    60LEDs per meter

    70LEDs per meter

    120LEDs per   meter

    Power:

    6W per meter

    6W per meter

    12W per meter

    White/ Warm   white:

    2800-3300K/ 5500-6500K

    PCB in:

    White PCB

    Beam Angle:

    120degrees

    Expected Life

    50,000hours

    Warranty:

    Two Years

    How Does led strip lights come out?


    60led/m Warm White LED Strip Lights

    If waterproof type with resin cover,

    60led/m Warm White LED Strip Lights
