600*600mm Square LED Panel Light
  • 600*600mm Square LED Panel Light
  • 600*600mm Square LED Panel Light
  • 600*600mm Square LED Panel Light
  • 600*600mm Square LED Panel Light

600*600mm Square LED Panel Light

20.0 USD
Min. Order:
4 Piece/Pieces
Payment Terms:
T/T
Place of Origin:
Guangdong, China (Mainland)
Means of Transport:
UPS DHL, Ocean, Air
Production Capacity:
3000pcs a week
Packing:
netual
Delivery Date:
10-15days
Brand Name:
Prime
Input:
110-270V,50~60Hz
Color:
White/warm white
CCT:
3000/4000/6000K
CRI:
Ra80
Angle:
120deg.
Certificates:
CE, RoHS
Warranty:
5 years

  • Product Description
  • Related Products
  • Related Links
  • 600*600mm Square LED Panel Light

    600*600mm Square LED Panel Light

    With Juefei 0.2W 2835 SMD and 100LPW, as well as Philips driver, 600*600mm Square LED Panel Light are super nice as the replacements to conventional grid panel light with fluorescent T8 tubes fixture. They are suitable as general lighting for school, hospitals, hotels, office buildings, shopping mall, museums, libaries and so on.

    There are three colour/Kelvin options, for Prime LED panel lights:


    6000-6500K– Ideal for kitchens, workshops, medical areas where a higher intensity, cleaner light is required.

    4000-4500K– Ideal for offices, corridors, kitchens.Most popular kelvin as closest to fluorescent.

    2700-3200K– Idea for Areas where reduced intensity lighting is needed. Looks good in all of the above and gives a warmer glow with the same level of light.


    Features of 36w 48W 54W 600*600mm Square LED Panel Light


    1. Save 70% on the electricity bill and maintenance cost;

    2. Long life to 40,000hours;

    3. No delay to light on;

    4. No UV or IR radiation, NO mercury;

    5. 6063 Aluminum alloy housing and Optical cover;

    6. 5 years Guaranteed


    Intensity distribution of 36W LED Panel Lighting

    Specification of 36w 48W 54W 600*600mm Square LED Panel Light

    Part No.

    PPL-0606-36W

    PPL-0606-48W

    PPL-0606-54W

    Size

    600*600mm

    600*600mm

    600*600mm

    Thickness

    10mm

    10mm

    10mm

    Power

    36W

    48W

    54W

    Lumens Output

    3600LM

    4800LM

    5200LM

    Color

    Warm white-2800-3500K,  Natural white-4000-4500K,

    White-5000-5500K,  Cold white-6000-6500K

    LED

    juefei 2835SMD

    LED Qty

    192pcs 2835SMD

    242pcs 2835SMD

    288pcs 2835SMD

    Input Voltage

    110-270V,50~60Hz

    110-270V,50~60Hz

    110-270V,50~60Hz

    PF

    0.95

    0.95

    0.95

    CRI

    Ra80

    Ra80

    Ra80

    Beam Angle

    120

    120

    120

    Lifespan

    50,000hours

    50,000hours

    50,000hours

    Operating Temperature

    -20~65 degrees Celsius

    -20~65 degrees Celsius

    -20~65 degrees Celsius


    Indoor Use, IP42

    Indoor Use,IP42

    Indoor Use,IP42

    Size of 600*600mm Square LED Panel Lighting

    All Prime LED panel lights are CE and RoHS approved, we always offer high quality LED lights

    How to install 60*60CM LED Panel lights:?


    Please avoid the conditions of corrosion or discoloration which might lower solderability or affect optical characteristics, as well as rapid transition in ambient temperature, especially in high humidity environments where condensation may occur.

    1. recessed

    2. hang with wires

    Packing:

    4 panels per carton, size by 73*73*25cm carton

    A 20' container can load 800panels

    A 40' container can load 1600panels

    LumenMax 54W 600*600mm LED Panel Lights

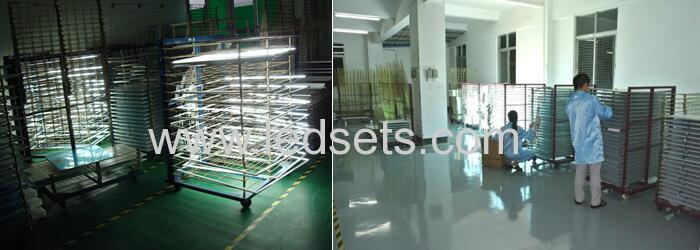

    Aging and final testing

    What is a good led panel light?

    1. Power supply, is one of most important factor to ensure standing performing of LEDs on PCB. While Prime's power supplies are UL listing or CE approved.

    2. Lighting source, some do the panel lights with 2835, 0.2W or 0.5W

    3. Optical cover, Excellent light transmittance of 90% and UV resistance, no harm to eye, especially good for reading.

    4. Light guide panel, optical design of micro structure creates better brightness.

    5. Reflector film, 96% as reflective rate.

    6. Aluminum frame helps to release the heat quicker, to make sure proper temperature for LED's working.


    How to order samples?

    1, Samples are available at your costs;

    2, You tell us which items, color and quantity you want, 5pcs as MOQ;

    3, I will issue a Performa invoice for the samples order;

    4, Production will go, if we do not have the stocks, after your payment by TT / Western Union;

    5, Samples will be sent out by DHL or UPS, as you like.

    Warranty Terms:

    1. Prime LED offers a warranty period of TWO years since the date cargos was shipped out;

    2. Prime LED will send free replacements or parts, after our confirmation of the evidence we request, if failure occurs under normal and right application within the period;

    3. Prime LED will offer you charged replacements or parts, if failure or damage due to incorrect operation or application.
