5mm SMD 3528 LED strip lights 12V

Place of Origin: Guangdong,China (Mainland)
Brand Name: Prime
Input: 12V/ 24V
CCT: All colors
Certificate: CE, RoHS
Watt: 4.8W/ 9.6W per meter
IP: IP20, non-waterproof
Warranty: 2 years
PCB: 5 mm
Custom CCT: Acceptable
Dimmable: YES

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:2.0~4.0 USDProduction Capacity:50,000meters a week
Trade Term:FOBPacking:netual packing
Payment Terms:T/T, WUDelivery Date:7-12days
Min. Order:5 Piece/Pieces
Means of Transport:Ocean, UPS, Air

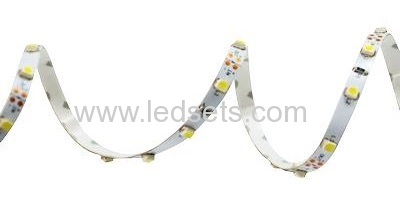

5mm SMD3528 LED strip lights 12V

For the special needs of small size LED strip light for the applications, PRIME offer you a 5mm SMD3528 LED strip lights 12V, with 5mm wide white PCB, and all single colors available.


60/120LEDs/M, 12V input


6-7LM per LED


Ra80


They can be used in a wide variety of applications, such as signage, channel letters, backlighting, panel edge lighting, under cabinet lighting, landscapes, step and stairs, motorcycle and automotive lighting, marine and recreational vehicle, retail and display case lighting, glass art, home theaters, media rooms and more.

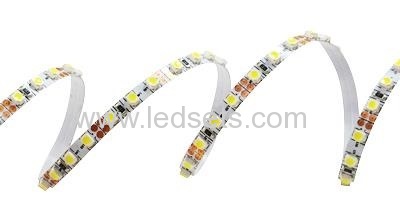

5mm SMD3528 LED strip lights 12V, 120LEDs per meter

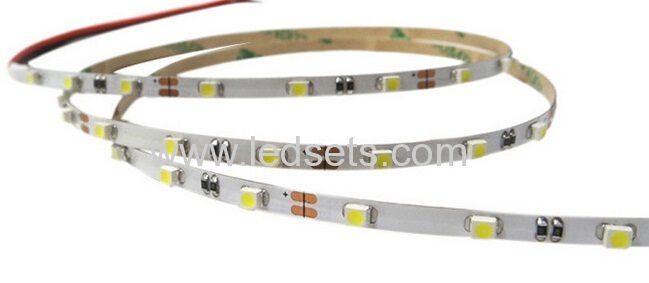

5mm SMD3528 LED strip lights 12V, 60LEDs per meter

 > Dimmable brightness and changeable color as you like;

> Flexible and can be separated in every 3LEDs along cut-edge or re-joint;

> Easy to install with 3M tape on backing or clips;

> Safe application at 12V or 24V;

> No hazards to environment;

> Long lifespan of 50,000 hours.


Technical Data:

Item

5mm SMD3528 LED strip lights 12V

Part NO. (IP20)

PFS-3528W60A-12

PFS-3528W120A-12

Voltage:

12V

12V

Size:

5mm wide, 5 meters a reel

5mm wide, 5 meters a reel

LED Type:

3528SMD

3528SMD

Quantity:

60LEDs per meter

120LEDs per meter

Power:

4.8W per meter

9.6W per meter

Color:

R/G/B/Y/W/WW

R/G/B/Y/W/WW

PCB in:

white

white

BeamAngle:

120degrees

120degrees

ExpectedLife

50,000hours

50,000hours

Warranty:

Two Years

Two Years


CE RoHS

CE RoHS

How can I do with them to work at 10meter long or more?


If only strips without dimmer or controller, get power in parallel;

Warm White LED Flex Strips, 2700-3500K
