5050 SMD LED Strip lights 12V

Place of Origin: Guangdong,China (Mainland)
Brand Name: Prime
Input: 12V/ 24V
Certificate: CE, RoHS
Watt: 7.2/14.4W per meter
IP: IP20, non-waterproof
Warranty: 2 years
PCB: 10 mm
Custom CCT: Acceptable
dimmalbe: YES

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:10.0~45.0 USDProduction Capacity:50,000meters a week
Trade Term:FOBPacking:netual packing
Payment Terms:T/T, WUDelivery Date:7-12days
Min. Order:5 Piece/Pieces
Means of Transport:Ocean, UPS, dhl, Air

5050 SMD LED Strip lights 12Vwhite PCB 5050 SMD LED Strip lights

5050 SMD LED Strip lights 12V white PCB come with white PCB, and also are available with black adn copper pcb.5050SMD, 7.2W or 14.4W per meter, 12/24V input, All single colors, like white, warm white, red, green, blue, yellow, pink, orange and UV are available. They are available in four varieties:

A) Regular Flex strip, 3M tape on backing, IP20;
B) Water resistance type with an encapsulated plastic Gel, 3M tape on backing, IP66;
C) Water resistance type with a protective Silicone jacket, can be fixed with clips, IP66
D) Waterproof type with silicone jacket and Gel inside, IP67.

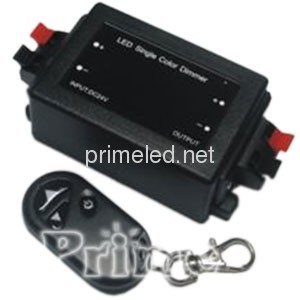

They can be Dimmable as you like, with the led dimmer showed:

white PCB 5050 SMD LED Strip lights single color tape lighting
> Flexible and can be separated in every 3LEDs along cut-edge or re-joint;
> Easy to install with 3M tape on backing or clips;
> Safe application at 12V or 24V;
> No hazards to environment;
> Long lifespan of 50,000 hours.


Size of 5050 SMD LED Strip lights:
White LED Flex Strip,5050SMD, 30/60LED/M

Technical Data of 5050 SMD LED Strip lights 12V white PCB

Part NO.(IP20)

PFS-5050X60A-12(Non-WP)

Voltage:

12V or 24V

Size:

10mm wide,5meters a reel

LED Type:

5050SMD

Quantity:

30 or 60 LEDspermeter

Power:

7.2 or 14.4W per meter

Color:

Red,green,blue,yellow, white, warm white, pink, orange

PCB in:

Copper,whiteor black

Beam Angle:

120 degrees

Expected Life

50,000hours

Warranty:

Two Years


FAQ:

1. Can we cut 5050 SMD LED Strip lights in short pieces, and re-joint?

Yes, can be cut in every 3 LEDs, minimum, and can re-joint with cables.


white pcb white 5050 SMD LED Strip lights

2. How Can I make them dimmable or color-changing?

First, you need a power supply (transformer) to convent main voltage to 12V or 24VDC;

Second, get a dimmer or controller from us or your market, wire them follow our instruction, and then power on;

Third, you go¡­

3. How can I do with them to work at 10meter long or more?

If only strips without dimmer or controller, get power in parallel;


How to order samples?

1, Samples are available at your costs;

2, You tell us which items, color and quantity you want, 5pcs as MOQ;

3, I will issue a Performa invoice for the samples order;

4, Production will go, if we do not have the stocks, after your payment by TT / Western Union;

5, Samples will be sent out by DHL or UPS, as you like.

Warranty Terms:

1. Prime LED offers a warranty period of TWO years since the date cargos was shipped out;

2. Prime LED will take the duty, and send free replacements or parts, after our confirmation of the evidence we request, if failure occurs under normal and right application within the period;

3. Prime LED will offer you charged replacements or parts, if failure or damage due to incorrect operation or application.
