40W LED Track lights Ra90
  • 40W LED Track lights Ra90
  • 40W LED Track lights Ra90
  • 40W LED Track lights Ra90

40W LED Track lights Ra90

30.0 USD
Min. Order:
100 Piece/Pieces
Trade Term:
FOB,EXW
Payment Terms:
T/T, WU
Place of Origin:
Guangdong, China (Mainland)
Means of Transport:
Ocean, Air
Production Capacity:
5000pcs a week
Packing:
netual
Delivery Date:
10-15days
Input:
AC100~240V 50/60Hz
Color Temperature(K):
3000-4000-5000K
LED:
USA Cree/Bridgelux
LED Qty:
One COB LED
CRI:
RA80/90
Heatsink:
Aluminum
Lifespan:
50,000Hrs
Certificates:
CE RoHS
Warranty:
THREE years

  • Product Description
  • Related Products
  • Related Links

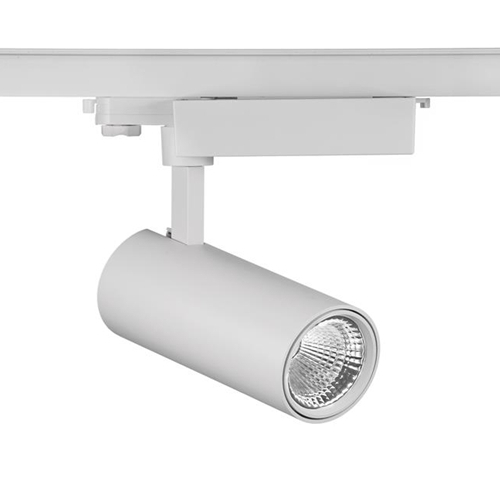

  • 40W LED Track Lights RA90

    LED track lighting is a system of small, individual spotlights mounted on a track that uses LED technology.It is generally more expensive than those which use fluorescent bulbs, however,LED technology uses less energy than incandescent and fluorescent bulbs, and lasts for a longer number of hours, which ultimately requires less replacing. 40W LED Track Lights RA90 are with Citizen/ CREE/ BRIDGELUX COB and 3500LM output, they are used very often in clothes outlets and furniture shops.


    15°, 24°, 36°and 60°, beam angles optional, reflector


    DIMMABLE with TRIAC, DALI, 0/1-10V, CCT TUNABLE AND DIM TO WARM are also available


    Features:

    • Citizen/Cree COB LED with good consistency

    • Luminaire 110 lm/Watt @ CRI80

    • CRI>97, 90, 80 available for 2700K, 3000K, 4000K, 5000K

    • Brushed aluminum body with good heat dissipation

    • Low thermal resistance, low UGR<19

    •  Flicker-free Isolated constant current driver

    • Triac, DALI, 0/1-10V dimming with external driver

    • Very even light distribution, high uniformity and no glare

    •  Instant switch-on regardless of temperature or humidity


    White(9016) housing is also avaialble as well as Black(9011)


    Demension in mm

    Details of the light

    Model No.

    PTL-PD40W-D90

    Wattage

    40W

    Input   Voltage

    AC200-240V / AC100-240V, 50/60Hz

    Output   Voltage

    DC 36V

    LED   Chip

    CITIZEN Version 6 1208

    CRI

    80+, 90+, 97+

    Color   temp.

    2700K -3000K - 4000K - 5000K

    Lamp   Efficiency

    105-110 lm/W

    Beam   angle

    15° - 24° - 36° - 60° (REFECLTOR)

    UGR

    < 19

    Macadam

    < 3 steps

    SDCM

    < 3

    THD

    < 15%

    PF

    > 0.95

    LED   driver

    BOKE

    Dimensions

    Φ90*L200mm

    Housing   material

    Die-Casting Aluminum

    Housing   color

    Black(9011)/ White(9016)

    Adapter   phase

    1 phase(2 wires, 3 wires) - 3 phase (4 wires)

    IP   rate

    IP20

    Working temp.

    -20℃ - +45℃

    Lifespan

    50,000 hours

    Color also can do some effect on the merchandise displaying, as well as purchasing psychology. Warm white in 2700k or 3000K is suitable for winter series applicaitons, while 4000k or 5000K is suitable for spring and autumn seasons, and 6000K is good for hot summer day.

    40W LED Track Lights RA90 are ideal for Showrooms, rooms with different ambients, banquets and, in general, large spaces that are always undergoing changes and need specific areas to be well lit.
