4 in 1 RGBW LED strip lights 12V 24V

Place of Origin: Guangdong,China (Mainland)
Brand Name: Prime
Input: 12V 24V
Color: RGBW
LED: 5050 4 IN 1
White: 2700K, 3000K, 4000K, 5000K, 6000K
IP: IP20/ IP66
PCB: 12 mm
Certificate: CE, RoHS
Warranty: 2 years

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:1.0 USDProduction Capacity:50,000meters a week
Trade Term:FOB,EXWPacking:netual packing
Payment Terms:T/T, WUDelivery Date:7-12days
Min. Order:5 Piece/Pieces
Means of Transport:Ocean, UPS, dhl, Air

4 in 1 RGBW LED strip lights 12V 24V

4 in 1 RGBW LED strip lights 12V 24V are provided with 4 in 1 LED, 4 color chips in one LED package, over most RGBW led strip lights in the market with one single white or warm white LED and one RGB 5050 LED, which make the led strip light more colorful and smaller by size. They are available with 60LEDs, 84LEDs and 96W LED per meter.

One LED with 4 colors as you like, white in 6-7LM each, white and warm white are available, in 27000K, 3000K, 4000K, 5000K and 6000K


Prime LED Flexible Ribbon Strip is available in four varieties:

A) Regular Flex strip, 3M tape on backing, IP20;

B) Water resistance type with epoxy resin or silicone gel, 3M tape on backing, IP66;

C) Water resistance type with a protective Silicone jacket, which can be fixed with clips, IP66;

D) Waterproof type with silicone jacket and silicone filled, IP68.

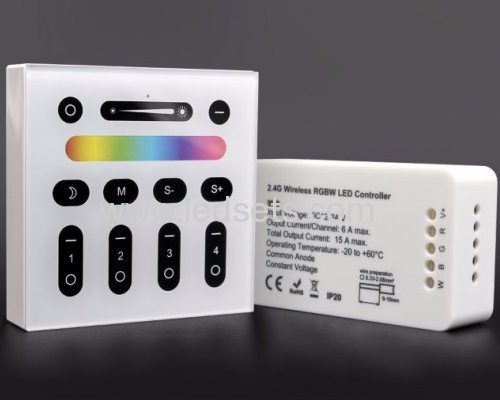

The Strips are working with the Wireless 2.4G RGBW LED controller as below, It can set 4 groups and working seperatedly, if needed.

They are generally in white PCB

Black PGB is available as well as white PCB

Technical Data of RGBW LED strip lights

Item

4 in 1 RGBW LED strip lights 12V 24V

Part NO. (IP20)

PFS-RGBW60A-24

PFS-RGBW84A-24

PFS-RGBW96A-24

Part NO. (IP65)

PFS-RGBW60B-24

PFS-RGBW84B-24

PFS-RGBW96B-24

Color:

RGBW

RGBW

RGBW

Voltage:

12V or 24V

12V or 24V

12V or 24V

Size:

12mm wide, 5 m a reel

12mm wide, 5 m a reel

12mm wide, 5 m a reel

LED Type:

4 in 1

4 in 1

4 in 1

Quantity:

60 LEDs per   meter

84 LEDs per   meter

96 LEDs per   meter

Power:

19.2W per meter

26.9W per meter

31.5W per meter

PCB in:

white, copper or black

Beam Angle:

120 degrees

Expected Life

50,000hours

Warranty:

Two Years

Connection diagram
