36W flat LED panel light China Dimmable
  • 36W flat LED panel light China Dimmable
  • 36W flat LED panel light China Dimmable
  • 36W flat LED panel light China Dimmable

36W flat LED panel light China Dimmable

30.0 USD
Min. Order:
2 Piece/Pieces
Trade Term:
FOB,EXW
Payment Terms:
T/T
Place of Origin:
Guangdong, China (Mainland)
Means of Transport:
UPS DHL, Ocean, Air
Production Capacity:
3000pcs a week
Packing:
netual
Delivery Date:
10-15days
Brand Name:
Prime
Input:
110-270V,50~60Hz
Color:
White/warm white
CCT:
3000/4000/6000K
CRI:
Ra80
Angle:
120deg.
Certificates:
CE, RoHS UL
Warranty:
three years

  • Product Description
  • Related Products
  • Related Links
  • 36W flat LED panel light China Dimmable

    36W 48W 54W 600*600mm Square LED Panel Light, Ra80, 80LM/W
    With Taiwan LumenMax 2835/5630SMD, and CE or UL driver, 36W flat LED panel light China Dimmable are super nice as the replacements to conventional grid panel light with fluorescent T8 tubes fixture.


    There are three colour/Kelvin options

    6000-6500K– Ideal for kitchens, workshops, medical areas where a higher intensity, cleaner light is required.

    4000-4500K– Ideal for offices, corridors, kitchens.Most popular kelvin as closest to fluorescent.

    2700-3200K– Idea for Areas where reduced intensity lighting is needed. Looks good in all of the above and gives a warmer glow with the same level of light.

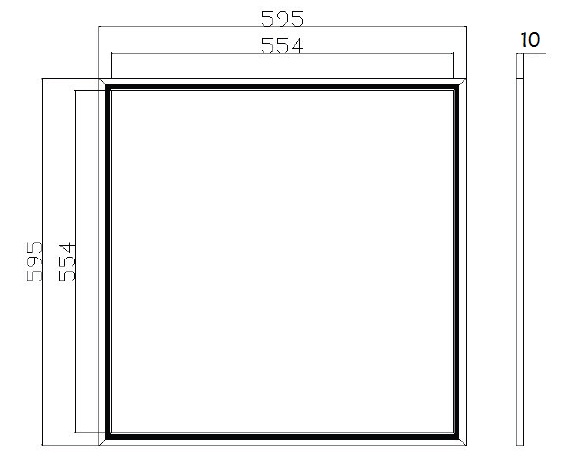

    Size of the lights

    Features of 36W flat LED panel light China


    1. Save 70% on the electricity bill and maintenance cost;

    2. Long life to 40,000hours;

    3. No delay to light on;

    4. No UV or IR radiation, NO mercury;

    5. 6063 Aluminum alloy housing and Optical PMMA cover;

    6. 5 years Guaranteed


    Intensity distribution of 36W flat LED panel light China


    Test report of 3000K 36W flat LED panel light China


    42/48/54W 600*600mm LED Panel Light


    Specification of 36W flat LED panel light China


    36W flat LED panel light China Dimmable

    Part No.

    PPL-6060-36W

    PPL-6060-48W

    PPL-6060-54W

    Size

    600*600mm

    600*600mm

    600*600mm

    Thickness

    10mm

    10mm

    10mm

    Power

    36W

    48W

    54W

    Lumens Output

    3600LM

    4800LM

    5200LM

    Color

    Warm white-2800-3500K,  Natural white-4000-4500K,

    White-5000-5500K,  Cold white-6000-6500K

    LED

    Epistar 0.2W 2835 SMD

    LED Qty

    192pcs 2835SMD

    242pcs 2835SMD

    288pcs 2835SMD

    Input Voltage

    110-270V,50~60Hz

    110-270V,50~60Hz

    110-270V,50~60Hz

    PF

    0.95

    0.95

    0.95

    CRI

    Ra80

    Ra80

    Ra80

    Beam Angle

    120

    120

    120

    Lifespan

    50,000hours

    50,000hours

    50,000hours

    Operating

    -20~65 degrees Celsius

    -20~65 degrees Celsius

    -20~65 degrees Celsius


    Indoor Use, IP42

    Indoor Use,IP42

    Indoor Use,IP42

    How to install 60*60CM LED Panel lights:?


    Please avoid the conditions of corrosion or discoloration which might lower solderability or affect optical characteristics, as well as rapid transition in ambient temperature, especially in high humidity environments where condensation may occur.

    1. recessed
     40/ 48/ 54W 620*620mm LED Panel Light

    2. hang with wires
    42/48/54W 600*600mm LED Panel Light
     40/ 48/ 54W 620*620mm LED Panel Light
