36W Dimmable LED panel lights 300*600mm

Place of Origin: Guangdong,China (Mainland)
Brand Name: Prime
Input: 110-270V,50~60Hz
Color: White/warm white
CCT: 3000/4000/6000K
CRI: Ra80
Angle: 120deg.
Certificates: CE, RoHS UL
Warranty: two years

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:50.0 USDProduction Capacity:3000pcs a week
Trade Term:FOB,EXWPacking:netual
Payment Terms:T/TDelivery Date:10-15days
Min. Order:4 Piece/Pieces
Means of Transport:UPS DHL, Ocean, Air

36W Dimmable LED panel lights 300*600mm

24/27W 300*600mm LED panel lights

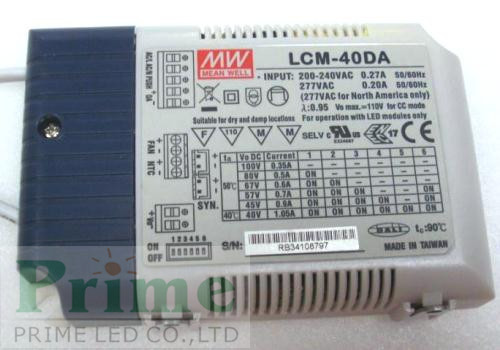

36W Dimmable LED panel lights 300*600mm as replacement of T8 fixture, are provide with 2835 SMD LEDs, Epistar 0.2W or HC 0.5W LED, as well as, Meanwell DALI/1-10V dimmer and last much longer, with a lifespan of 40,000hours.

They are welcomed as general lighting for school, hospitals, hotels, office buildings, shopping mall, museums, libaries and so on.


Features:

1. Save 60-70% on the electricity bill and maintenance cost;

2. Long life to 40,000hours;

3. No delay to light on;

4. No UV or IR radiation, NO mercury;

5. Aluminum alloy housing and Optical PMMA cover;

6. Two years Guaranteed

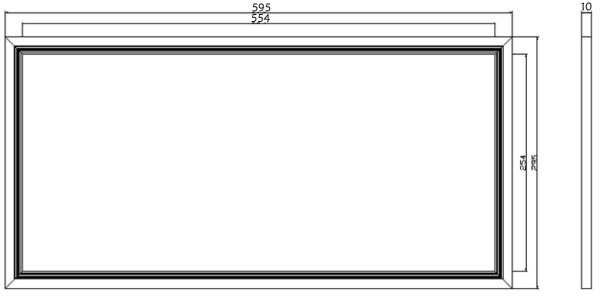

Size of the lights

Details of the lights

Item

36W Dimmable LED panel lights 300*600mm

Part No.

PPL-3060-36W

Size

300*600mm

Thickness

10mm

Power

36W

Lumens Output

3500LM

Efficiency

100LPW

LED Qty

192pcs 2835SMD

CCT

Warm white-2800-3500K,  Natural   white-4000-4500K,

White-5000-5500K,  Cold white-6000-6500K

Input Voltage

110-270V,50~60Hz

PF

0.95

CRI

Ra80

Beam Angle

120

Lifespan

50,000hours

Operating

-20~65 degrees Celsius


Indoor Use, IP42

How to install 36W Dimmable LED panel lights 300*600mm?


Please avoid the conditions of corrosion or discoloration which might lower solderability or affect optical characteristics, as well as rapid transition in ambient temperature, especially in high humidity environments where condensation may occur.

How to order samples?

1, Samples are available at your costs;

2, You tell us which items, color and quantity you want, 5pcs as MOQ;

3, I will issue a Performa invoice for the samples order;

4, Production will go, if we do not have the stocks, after your payment by TT / Western Union;

5, Samples will be sent out by DHL or UPS, as you like.

Warranty Terms:

1. Prime LED offers a warranty period of TWO years since the date cargos was shipped out;

2. Prime LED will send free replacements or parts, after our confirmation of the evidence we request, if failure occurs under normal and right application within the period;

3. Prime LED will offer you charged replacements or parts, if failure or damage due to incorrect operation or application.

Category: Dimmable LED panels

Related Category: Super LED Panels  Eco LED Panels  RGB LED panels
