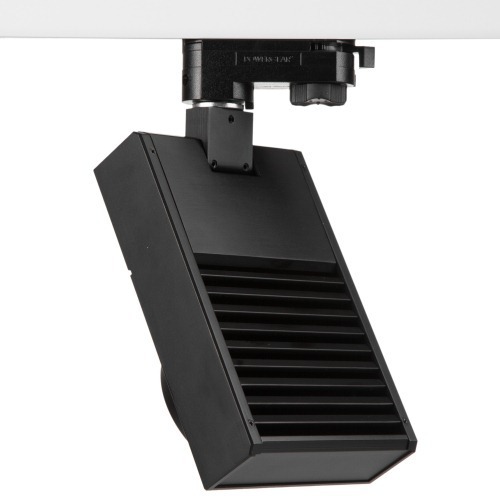

30W LED track lights for museum
  • 30W LED track lights for museum
  • 30W LED track lights for museum
  • 30W LED track lights for museum
  • 30W LED track lights for museum

30W LED track lights for museum

50.0 USD
Min. Order:
100 Piece/Pieces
Trade Term:
FOB,EXW
Payment Terms:
T/T, WU
Place of Origin:
Guangdong, China (Mainland)
Means of Transport:
UPS DHL, Ocean, Air
Production Capacity:
5000pcs a week
Packing:
Netural
Delivery Date:
10-15days
Brand Name:
Prime
Input:
110~240VAC
Color:
white /warm white
White CCT:
5700-6500K
warm white CCT:
2800-3500K
Angle:
12, 23, 38Deg.
LED:
Citizen
CRI:
Ra80/ 90
Certificates:
CE RoHS UL

  • Product Description
  • Related Products
  • Related Links
  • 30W LED track lights for Museum

    30W LED track lights for Museum are highly recommend for museum applications, with Citizen COB, Version 6, Ra80-97 and 90-110LPW output and 5 years warranty AGT or Osram driver,  where asks super high quality illumination. Also, they are used very often in businesses and shops, although they are mainly used in clothes outlets and furniture shops.


    3000LM output and 27000K, 3000K, 4000K and 5000


    350°adjustable horizontally, 90°adjustable vertically


    12°/°24°/ 38°, optional, UGR<19

    Features:

    Cute design with Ultra slim compact design, square shape

    Citizen COB LED with high color rendering of Ra80, Ra90 or Ra97

    CRI>97, 90 available for 2700K, 3000K, 4000K

    Brushed aluminumas housing with great heat dissipation

    Name LED driver with Tridonic, Philips or HEP flicker-free driver, optional

    Special designed reflector and lense leads to similar brightness to halogens, however low glare, UGR<19


    Spectrum Distribution

    Item:

    30W LED track lights for Museum

    Model No.

    PTL-PD25W

    PTL-PD30W

    PTL-PD35W

    Wattage

    25W

    30W

    35W

    Current

    600mA

    750mA

    800mA

    Output

    2500LM

    3000LM

    3500LM

    Input Voltage

    AC200-240V / AC100-240V, 50/60Hz

    Output Voltage

    DC 36V

    LED Chip

    Version 6 CITIZEN COB / CREE COB

    CRI

    80+, 90+, 97+

    Color temp.

    2700K, 3000K, 4000K, 5000K

    Lamp Efficiency

    90-110 lm/W @ CRI80

    Beam angle

    12°/ 24°/ 38°

    UGR

    < 19

    Macadam

    < 3 steps

    SDCM

    < 5

    THD

    < 15%

    PF

    > 0.95

    LED driver

    Tridonic, Philips, HEP

    Dimensions

    Φ107*L38.5*H170 mm

    Housing material

    6063 brushed aluminum alloy

    Track adapter

    Global, PowerGear

    Adapter phase

    1 phase(2 wires, 3 wires), 3 phase (4   wires)

    IP rate

    IP20

    Working temp.

    20℃ to 45℃

    Lifespan

    50,000 hours

    Warranty

    5 years

    They are also available with white housing

    Packing

    10pcs lights in one carton, 13KG, gross weight


    LED track lights are ideal for Showrooms, rooms with different ambients, banquets and, in general, large spaces that are always undergoing changes and need specific areas to be well lit.
