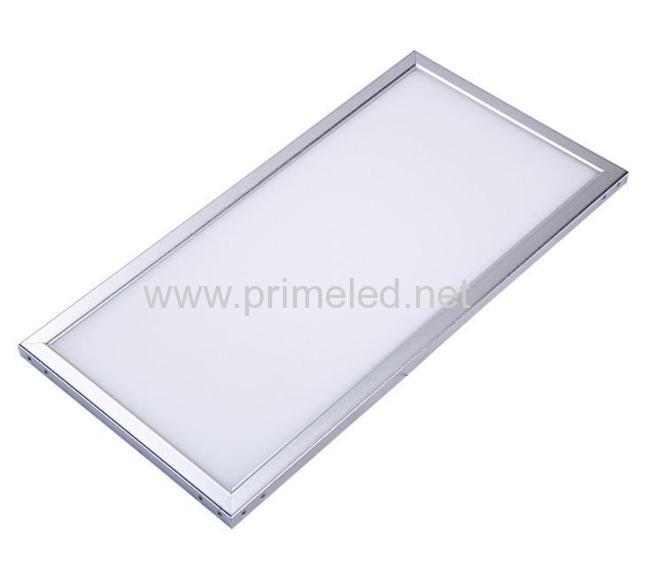

300*600mm ceiling LED Panel Light
  • 300*600mm ceiling LED Panel Light

300*600mm ceiling LED Panel Light

20.0~40.0 USD
Min. Order:
2 Piece/Pieces
Trade Term:
FOB
Payment Terms:
T/T, WU
Place of Origin:
Guangdong, China (Mainland)
Means of Transport:
UPS DHL, Ocean, Air
Production Capacity:
3000pcs a week
Packing:
netual
Delivery Date:
10-15days
Brand Name:
Prime
Input:
110-270V,50~60Hz
Color:
White/warm white
CCT:
3000/4000/6000K
CRI:
Ra80
Angle:
120deg.
Certificates:
CE, RoHS UL
Warranty:
two years

  • Product Description
  • Related Products
  • Related Links
  • 300*600mm ceiling LED Panel Light


    With Taiwan LumenMax 2835 SMD or 5630SMD, 18W 24W 27W 300*600mm ceiling LED Panel Light are super nice as the replacements to conventional grid panel light with fluorescent tubes fixture.

    Features:

    1. Save 70% on the electricity bill and maintenance cost;

    2. Long life to 40,000hours;

    3. No delay to light on;

    4. No UV or IR radiation, NO mercury;

    5. 6063 Aluminum alloy housing and Optical PMMA cover;

    6. Two years Guaranteed


    Specification of18W 24W 27W 300*600mm ceiling LED Panel Light

    Part No.

    PPL-0306-18W

    PPL-0306-24W

    PPL-0306-27W

    Size

    300*600mm

    300*600mm

    300*600mm

    Thickness

    12mm

    12mm

    12mm

    Power

    18W

    24W

    27W

    Lumens Output

    1200-1400LM

    1800-2100LM

    2000-2300LM

    Color

    Warm white-2800-3500K,  Natural white-4000-4500K,

    White-5000-5500K,  Cold white-6000-6500K

    LED

    LumenMax / HONGLI 2835SMD or Lumenmax 5630 SMD

    LED Qty

    96pcs 2835SMD

    44pcs 5630SMD

    120pcs 2835SMD

    55pcs 5630SMD

    144pcs 2835SMD

    60pcs 5630SMD

    Input Voltage

    110-270V,50~60Hz

    110-270V,50~60Hz

    110-270V,50~60Hz

    PF

    0.95

    0.95

    0.95

    CRI

    Ra80

    Ra80

    Ra80

    Beam Angle

    120

    120

    120

    Lifespan

    50,000hours

    50,000hours

    50,000hours

    Operating Temperature

    -20~65 degrees Celsius

    -20~65 degrees Celsius

    -20~65 degrees Celsius


    Indoor Use, IP42

    Indoor Use,IP42

    Indoor Use,IP42

    How to intall LED panel lights?

    Please avoid the conditions of corrosion or discoloration which might lower solderability or affect optical characteristics, as well as rapid transition in ambient temperature, especially in high humidity environments where condensation may occur.

    1. recessed
     40/ 48/ 54W 620*620mm LED Panel Light
    2. hang with wires
     40/ 48/ 54W 620*620mm LED Panel Light


    What is a good 300*600mm ceiling LED Panel Light?

    1. Power supply is one of most important factor to ensure standing performing of LEDs on PCB. While Prime's power supplies are UL listing or CE approved.

    2. Lighting source, some do the panel lights with 3528SMD, some with 3014LED/5630LED (side-viewing), while side viewing LED makes soft lighting brightness with higher uniformity.

    3. PMMA cover, Excellent light transmittance of 90% and UV resistance, no harm to eye, especially good for reading.

    4. Light guide panel, optical design of micro structure creates better brightness.

    5. Reflector film, 96% as reflective rate.

    6. Aluminum frame helps to release the heat quicker, to make sure proper temperature for LED's working.



    How to order samples?

    1, Samples are available at your costs;

    2, You tell us which items, color and quantity you want, 5pcs as MOQ;

    3, I will issue a Performa invoice for the samples order;

    4, Production will go, if we do not have the stocks, after your payment by TT / Western Union;

    5, Samples will be sent out by DHL or UPS, as you like.

    Warranty Terms:

    1. Prime LED offers a warranty period of TWO years since the date cargos was shipped out;

    2. Prime LED will send free replacements or parts, after our confirmation of the evidence we request, if failure occurs under normal and right application within the period;

    3. Prime LED will offer you charged replacements or parts, if failure or damage due to incorrect operation or application.
