300*300mm LED panel lights

Model: PPL-0303-18W/36W
Place of Origin: Guangdong,China (Mainland)
Brand Name: Prime
Input: 110-270V,50~60Hz
Color: White/warm white
CCT: 3000/4000/6000K
CRI: Ra80
Angle: 120deg.
Certificates: CE, RoHS UL
Warranty: two years

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:20.0~50.0 USDProduction Capacity:3000pcs a week
Trade Term:FOBPacking:netual
Min. Order:2 Piece/PiecesDelivery Date:10-15days
Means of Transport:UPS DHL, Ocean, Air

300*300mm LED panel lights
18/36W Ra75/ Ra80 300*300mm LED panel lights
300*300mm LED panel lights, 300*300mm, is pretty nice as replacement of CFL receesed downlight, with Taiwan LumenMax 3014 SMD (CRI 75) or Samsung 5630SMD (CRI80).

We do LED panel lights with Orignal Samsung LED:

3000K:5630_H CRI-SPMWHT5225D5WAV0S0-VA:3040-3140K

4000K: 5630_H CRI-SPMWHT5225D5WAT0S0-T2:3970-4110K

6000K:5630_H CRI-SPMWHT5225D5WAP0S0-P2:6020-6490K


Features:

1. Save 60-70% on the electricity bill and maintenance cost;

2. Long life to 40,000hours;

3. No delay to light on;

4. No UV or IR radiation, NO mercury;

5. Aluminum alloy housing and Optical PMMA cover;

6. Two years Guaranteed


They are welcomed for the lighting at bathroom, kitchen or lobby.

Specification

> Power consumption: 18W/ 36W

> Color: 5500K (White)
> Output: 1200-1400LM/ 2700-2900LM
> Dimension: 300*300x12mm

> Beam angle :> 120degree

> CRI: >75, 80(samsung)

The Curves indicate the illuminated area and the average

illumination when the 18W LED panel light is at different distance.


18W 300*300mm LED panel lights

Deatils of 18W 36W 300*300mm LED panel lights

Part No.

PPL-0303-18W

PPL-0303-24W

PPL-0303-36W

Size

300*300*12mm

300*300*12mm

300*300*12mm

Power

18W

24W

36W

Lumens Output

1200-1400LM

1800-2100LM

2700-2900LM

Color

White / Warm white

White / Warm white

White / Warm white

LumenMax 2835

96pcs

120pcs

192pcs

Samsung 5630

48pcs

48pcs

96pcs

Input Voltage

110-270V AC, 50~60Hz

110-270V AC, 50~60Hz

110-270V AC, 50~60Hz

CRI

80

80

80

Beam Angle

120

120

120

Lifespan

50,000hours

50,000hours

50,000hours

Operating Temperature

-20~65 degrees Celsius

-20~65 degrees Celsius

-20~65 degrees Celsius


Indoor Use, IP42

Indoor Use, IP42

Indoor Use, IP42

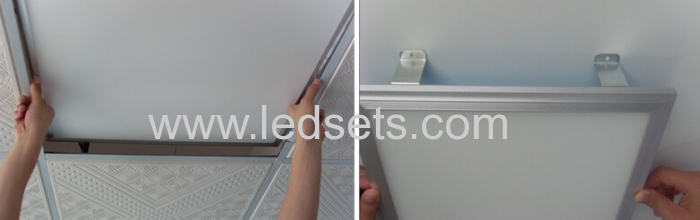

Installation



Please avoid the conditions of corrosion or discoloration which might lower solderability or affect optical characteristics, as well as rapid transition in ambient temperature, especially in high humidity environments where condensation may occur.

How A Prime LED Panel light comes out?

As we source LEDs for the panel lights originally from Samsung, LumenMax and HONGLI, so NO packaging and sorting jobs in Prime LED's.

36/42/48/54W 600*600mm LED Panel Light
36/42/48/54W 600*600mm LED Panel Light


How to order samples?

1, Samples are available at your costs;

2, You tell us which items, color and quantity you want, 5pcs as MOQ;

3, I will issue a Performa invoice for the samples order;

4, Production will go, if we do not have the stocks, after your payment by TT / Western Union;

5, Samples will be sent out by DHL or UPS, as you like.

Warranty Terms:

1. Prime LED offers a warranty period of TWO years since the date cargos was shipped out;

2. Prime LED will take the duty, and send free replacements or parts, after our confirmation of the evidence we request, if failure occurs under normal and right application within the period;

3. Prime LED will offer you charged replacements or parts, if failure or damage due to incorrect operation or application.
