300*1200mm Square LED Panel Lights

Place of Origin: Guangdong,China (Mainland)
Brand Name: Prime
Input: 110-270V,50~60Hz
Color: White/warm white
CCT: 3000/4000/6000K
CRI: Ra80
Angle: 120deg.
Certificates: CE, RoHS UL
Warranty: two years

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:40.0~60.0 USDProduction Capacity:3000pcs a week
Trade Term:FOBPacking:netual
Min. Order:2 Piece/PiecesDelivery Date:10-15days
Means of Transport:UPS DHL, Ocean, Air

300*1200mm Square LED Panel Lights
36/42/48/54W 300*1200mm LED Panel Lights
36W 48W 54W 300*1200mm Square LED Panel Lights, with Taiwan LumenMax 5630SMD (CRI80), are super nice as the replacement to conventional T8 tubes fixture, and will Save you 70% on the electricity bill and Zero maintenance


Features:

- Easy installation and cleaning surface

- Up to 40,000 hour lifespan

- Active CO2 reduction

- High efficiency lighting

- Increased brightness and light spread requiring fewer lighting units

- Ideal for retail and display environments with no UV

- Exceptionally thin and lightweight structure

- 6063 Aluminum alloy housing and Optical PMMA cover;

- Three years Guaranteed

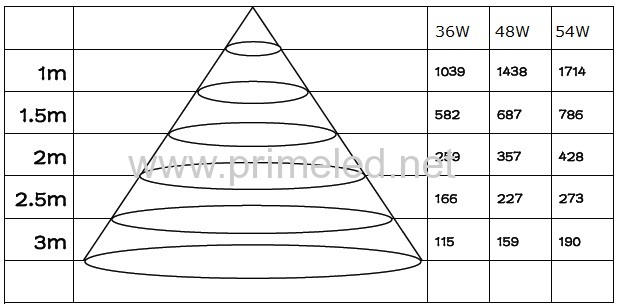

Lumiance distibution of 36W 48W 54W 300*1200mm LED Panel Lights

There are three colour/Kelvin options, for Prime LED panel lights:

6000-6500K– Ideal for kitchens, workshops, medical areas where a higher intensity, cleaner light is required.

4000-4500K– Ideal for offices, corridors, kitchens.Most popular kelvin as closest to fluorescent.

2800-3500K– Idea for Areas where reduced intensity lighting is needed. Looks good in all of the above and gives a warmer glow with the same level of light.


Specification sheet of 300*1200mm Square LED Panel Lights

Part No.

PPL-0312-36W

PPL-0312-48W

PPL-0312-54W

Size

300*1200mm

300*1200mm

300*1200mm

Power

36W

48W

54W

Lumens Output

2800-3300LM

3600-3800LM

4200-5000LM

Color

Warm white-2800-3500K,  Natural white-4000-4500K,

White-5000-5500K,  Cold white-6000-6500K

LED

Lumenmax 5630 SMD

LED

88pcs 5630SMD

110pcs 5630SMD

120pcs 5630SMD

Input Voltage

110-270V,50~60Hz

110-270V,50~60Hz

110-270V,50~60Hz

CRI

Ra80

Ra80

Ra80

PF

0.95

0.95

0.95

Beam Angle

120

120

120

Lifespan

50,000hours

50,000hours

50,000hours

Operating Temperature

-20~65 degrees Celsius

-20~65 degrees Celsius

-20~65 degrees Celsius


Indoor Use,IP42

Indoor Use,IP42

Indoor Use,IP42

Size of 300*1200mm led panel lights:


How to install 300*1200mm Square LED Panel Lights?

Please avoid the conditions of corrosion or discoloration which might lower solderability or affect optical characteristics, as well as rapid transition in ambient temperature, especially in high humidity environments where condensation may occur.

1. recessed
 40/ 48/ 54W 620*620mm LED Panel Light
2. hang with wires
 40/ 48/ 54W 620*620mm LED Panel Light

Packing:

5630LED 48W 300*1200mm LED Panel Lights

how to make a led light panel?


As we source LEDs for the panel lights originally from Samsung, LumenMax and HONGLI, so NO packaging and sorting jobs in Prime LED's.

36/42/48/54W 600*600mm LED Panel Light
36/42/48/54W 600*600mm LED Panel Light


How to order samples?

1, Samples are available at your costs;

2, You tell us which items, color and quantity you want, 5pcs as MOQ;

3, I will issue a Performa invoice for the samples order;

4, Production will go, if we do not have the stocks, after your payment by TT / Western Union;

5, Samples will be sent out by DHL or UPS, as you like.

Warranty Terms:

1. Prime LED offers a warranty period of TWO years since the date cargos was shipped out;

2. Prime LED will send free replacements or parts, after our confirmation of the evidence we request, if failure occurs under normal and right application within the period;

3. Prime LED will offer you charged replacements or parts, if failure or damage due to incorrect operation or application.
