300*1200mm LED flat Panel Lights
  • 300*1200mm LED flat Panel Lights
  • 300*1200mm LED flat Panel Lights
  • 300*1200mm LED flat Panel Lights
  • 300*1200mm LED flat Panel Lights

300*1200mm LED flat Panel Lights

40.0 USD
Min. Order:
2 Piece/Pieces
Trade Term:
FOB,EXW
Payment Terms:
T/T, WU
Place of Origin:
Guangdong, China (Mainland)
Means of Transport:
UPS DHL, Ocean, Air
Production Capacity:
3000pcs a week
Packing:
netual
Delivery Date:
10-15days
Brand Name:
Prime
Input:
110-270V,50~60Hz
Color:
White/warm white
CCT:
3000/4000/6000K
CRI:
Ra80
Angle:
120deg.
Certificates:
CE, RoHS UL
Warranty:
two years

  • Product Description
  • Related Products
  • Related Links
  • 300*1200mm LED flat Panel Lights

    36W 48W 300*1200mm LED flat Panel Lights, with 0.5W HC LED and 110LPW or 120LPW, as well as 5 years warranty LED drivers, are super nice as the replacement for 2*40W T8 tubes fixture.


    They are welcomed as general lighting for school, hospitals, hotels, office buildings, shopping mall, museums, libaries and so on.


    36W and 4000LM, 48W and 5200LM


    UGR<19


    Ra80


    Features:

    1. Save 60-70% on the electricity bill and maintenance cost;

    2. Long life to 40,000hours;

    3. No delay to light on;

    4. No UV or IR radiation, NO mercury;

    5. Aluminum alloy housing and Optical PMMA cover;

    6. 5 years Guaranteed


    Lumiance distibution of white 48W 300*1200mm LED flat Panel Lights

    Testing of 48W LED Panel Light:

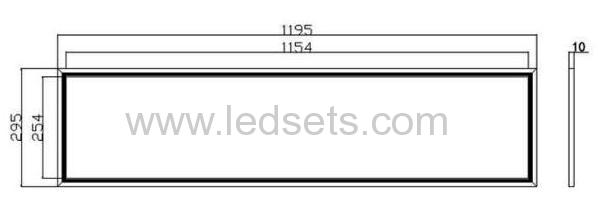

    Size of the led panels

    Details of the 300*1200mm LED flat Panel Lights:

    Part No.

    PPL-30120-36W

    PPL-30120-48W

    Size

    300*1200mm

    300*1200mm

    Thickness

    10mm

    10mm

    Power

    36W

    48W

    Lumens Output

    4000LM

    5200LM

    LED Qty

    192pcs 2835SMD

    216pcs 2835SMD

    Efficiency

    110LPW

    110LPW

    CCT

    Warm white-2800-3500K,  Natural white-4000-4500K,

    White-5000-5500K,  Cold white-6000-6500K

    Input Voltage

    110-270V,50~60Hz

    110-270V,50~60Hz

    CRI

    Ra80

    Ra80

    Beam Angle

    120

    120

    Lifespan

    50,000hours

    50,000hours

    Operating

    -20~65 degrees Celsius

    -20~65 degrees Celsius


    Indoor Use, IP42

    Indoor Use,IP42

    How to install 300*1200mm LED flat Panel Lights?


    Please avoid the conditions of corrosion or discoloration which might lower solderability or affect optical characteristics, as well as rapid transition in ambient temperature, especially in high humidity environments where condensation may occur.

    1. recessed
     40/ 48/ 54W 620*620mm LED Panel Light
    2. hang with wires
     40/ 48/ 54W 620*620mm LED Panel Light

    What is a good 300*1200mm LED flat Panel Lights?

    1. Power supply is one of most important factor to ensure standing performing of LEDs on PCB. While Prime's power supplies are UL listing or CE approved.

    2. Lighting source, some do the panel lights with 3528SMD, some with 3014LED/5630LED (side-viewing), while side viewing LED makes soft lighting brightness with higher uniformity.

    3. PMMA cover, Excellent light transmittance of 90% and UV resistance, no harm to eye, especially good for reading.

    4. Light guide panel, optical design of micro structure creates better brightness.

    5. Reflector film, 96% as reflective rate.

    6. Aluminum frame helps to release the heat quicker, to make sure proper temperature for LED's working.

    36/42/48/54W 600*600mm LED Panel Light
