2700K Warm White SMD 3528 LED Strip Lights 12V

Place of Origin: Guangdong,China (Mainland)
Brand Name: Prime
Input: 12V/ 24V
CCT: 2700-3500K
Certificate: CE, RoHS
Watt: 4.8W/ 9.6W per meter
IP: IP20, non-waterproof
Warranty: 2 years
PCB: 8 or 10 mm
Custom CCT: Acceptable
Dimmable: YES

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:2.0 USDProduction Capacity:50,000meters a week
Trade Term:FOB,EXWPacking:netual packing
Payment Terms:WU, T/TDelivery Date:7-12days
Min. Order:5 Piece/Pieces
Means of Transport:Ocean, Air, UPS

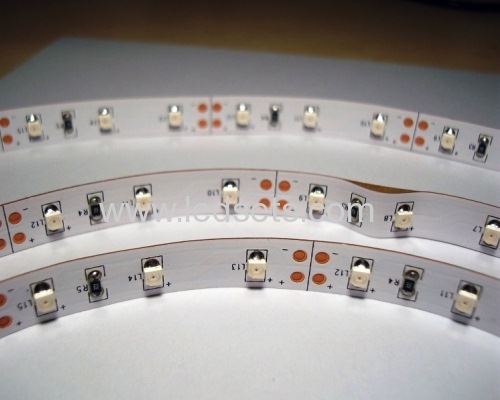

2700K Warm White SMD 3528 LED Strip Lights 12V


2700K Warm White SMD 3528 LED Strip Lights 12V
are the most welcomed item among the range, they comes with 3528SMD in 2800-3300K or some special requirments like 2600-2700K, which is terrific for home use or clubs, where needs to make comfortable and warm feeling.


60/120LEDs/M, 12/24V input


For different demands, Prime offer you 3528 LED strip lights with 4-5LM per LEDs, 5-6LM per LED or  6-7LM per LED, for your choices, prices vary accordingly.


Male-female LED strip connectors for your options

Male-female Waterproof LED strip connectors for your options

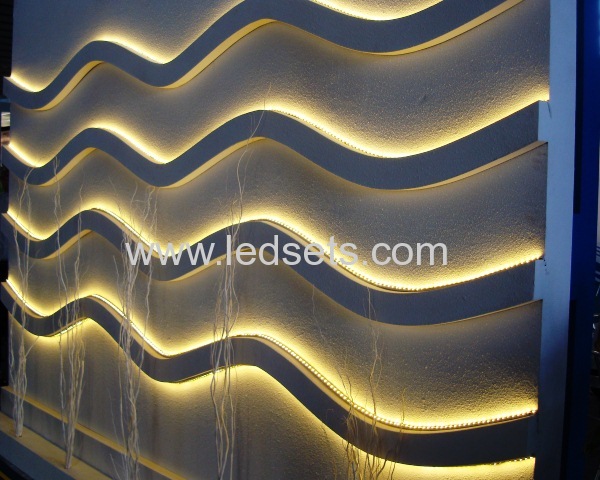

2700K Warm White SMD 3528 LED Strip Lights 12V can be also used in a wide variety of applications, such as signage, channel letters, backlighting, panel edge lighting, under cabinet lighting, landscapes, step and stairs, motorcycle and automotive lighting, marine and recreational vehicle, retail and display case lighting, glass art, home theaters, media rooms and more.

 > Dimmable brightness and changeable color as you like;

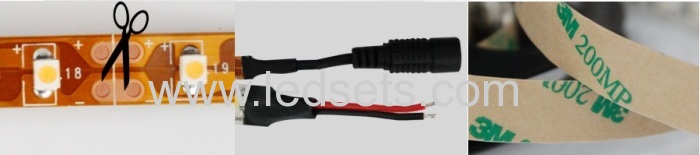

> Flexible and can be separated in every 3LEDs along cut-edge or re-joint;
> Easy to install with 3M tape on backing or clips;
> Safe application at 12V or 24V;
> No hazards to environment;
> Long lifespan of 50,000 hours.

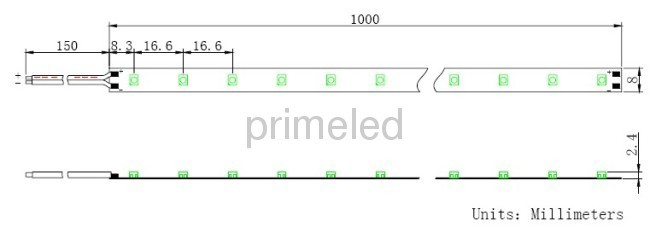

Size of the  LED Strip Lights

2700-3500K Warm White LED Strip Lights

Prime 2700K or 2800-3300K Warm White 3528 LED Strip Lights  are available in four varieties:

A) Regular Flex strip, 3M tape on backing, IP20;
B) Water resistance type with an epoxy resin or silicone gel, 3M tape on backing, IP66;
C) Water resistance type with a protective Silicone jacket, can be fixed with clips, IP66
D) Waterproof type with silicone/PVC jacket and silicone gel inside, IP67.

Technical Data 2700K Warm White SMD 3528 LED Strip Lights 12V

PartNO. (IP20)

PFS-3528W60A-12

PFS-3528W120A-12

Voltage:

12V or 24V

12V or 24V

Size:

10mmwide, 5 meters a reel

10mmwide, 5 meters a reel

LEDType:

3528SMD

3528SMD

Quantity:

60LEDs per meter

120LEDs per meter

Power:

4.8Wper meter

9.6Wper meter

White:

2800-3300K

2800-3300K

PCBin:

Copper,white or black

Copper,white or black

BeamAngle:

120degrees

120degrees

ExpectedLife

50,000hours

50,000hours

Warranty:

TwoYears

TwoYears


FAQ:

1. Can we cut them in short pieces, and re-joint the 2700K Warm White SMD 3528 LED Strip Lights 12V ?


Yes, can be cut in every 3 LEDs, minimum, and can re-joint with cables.

2. How Can I make them dimmable or color-changing?

First, you need a power supply (transformer) to convent main voltage to 12V or 24VDC;

Second, get a dimmer or controller from us or your market, wire them follow our instruction, and then power on;

Third, you go¡­

3. How can I do with them to work at 10meter long or more?

If only strips without dimmer or controller, get power in parallel;

Warm White LED Flex Strips, 2700-3500K

How Does a led strip come out?


60led/m Warm White LED Strip Lights
