10W LED downlight sydney

Place of Origin: Guangdong,China (Mainland)
Brand Name: Prime
Input: AC100~240V 50/60Hz
Color Temperature(K): 3000-4000-5000K
LED: USA Cree/Bridgelux
LED Qty: One COB LED
CRI: Ra75-80
Heatsink: A1070 Aluminum
Lifespan: 35,000Hrs
Certificates: CE RoHS
Warranty: Two years

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:11.0 USDProduction Capacity:5000pcs a week
Trade Term:FOBPacking:netual
Min. Order:100 Piece/PiecesDelivery Date:10-15days

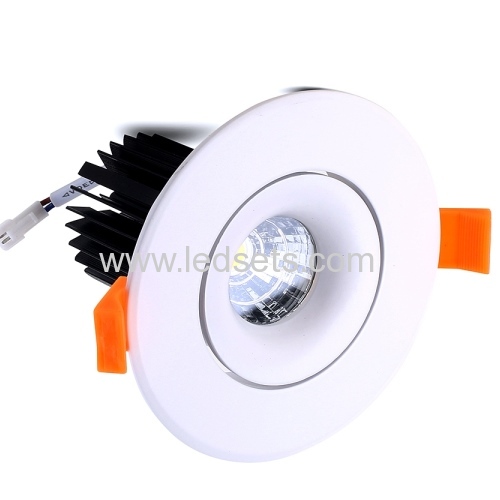

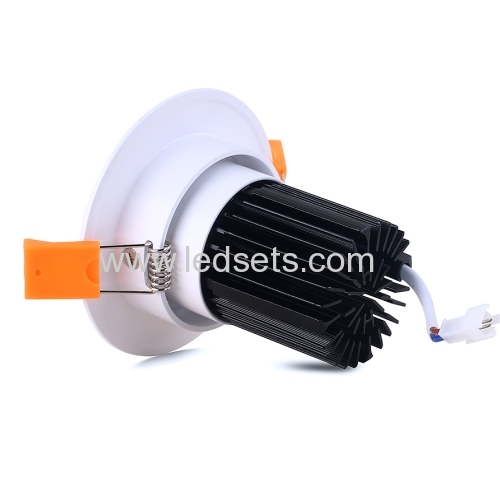

10W COB LED downlight sydney

 Forged A1070 aluminium as heatsink, with thermal conductivity of 286W/m.K, and 600-700LM output, the 10W COB LED downlight sydney is quite nice as repalcements of 50W halogens in your exsiting downlights or spotlights fixtures, with USA Cree LED or USA Bridgelux LED and brand LED driver.


24, 40 and 60 deg. optional as beam angle.


The COB LED downlights are also avaiable with 7W, 12W, 15W, 20W, 25W, 30W, 40W and 50W, with Aide or Lifud LED drivers.


They are quite welcomed as general lighting or spot lighting in shops, hotels, musuems and show rooms, or like that.


Features:

1. Forged A1070 aluminium as heatsink, about double thermal conductivity of die casting heatsinks, which  is best cooling solution of LED lightings

2. COB LED as lighting source, with high efficiency;

3, USA Cree LED or Bridgelux LED, good quality with more output;

4. Special designed reflector leads to similar brightness to halogens;

5. Brand drivers/power supplies from top companies inthe market, to ensure outstanding and standing working of the lights;

6. Save you 70% electricity bills and maintance costs.


Aide LED drivers of 10W COB LED downlight 700LM 80mm cutout

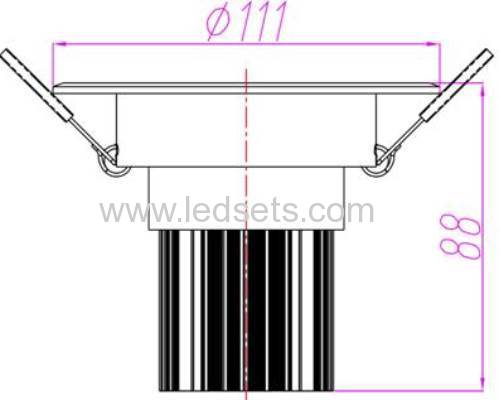

Size of 10W COB LED downlight 700LM 80mm cutout


warm white in 3000K and 24deg 10W COB LED downlight 700LM 80mm cutout


warm white in 3000K 10W COB LED downlight 700LM 80mm cutout


Product Details:


10W COB LED downlight sydney

Product Code

PDL-COB10X

Power Consumption

10W

Input Voltage

AC100~240V 50/60Hz

LED

USA CREE/ Bridgelux

Light Output

600-700LM

Color

3000K/ 4000K/ 5000K

Cut out

80mm

Rendering Index

RA75-80

Beam Angle

24°, 40° AND 60°

Operation Temperature

-20º~+50º

Fixturebody Temperature

40º~60º

Material

A1070 Aluminum

Expected Life

35,000Hours

Certifications

CE and RoHS

Final Testing and aging

Precision forged heat sinks offer several important advantages over their machined, die cast and extruded counterparts. The increased thermal performance coupled with the ability to expand the surface area without increasing the size of the heat sink are unique advantages. These factors are especially critical when space is limited and/or weight reduction is critical to the product.


And also, precision forged heat sinks can often be manufactured at a lower cost because most operations can be performed in the tool and secondary operations are reduced.


More information of benifits of forging heatsinks, you are welcomed to refer to our FAQ.


Quality Control:

All Prime LED lights after production completed will be under a testing and aging(keep lighting) of 24 hours at least, to ensure their reliability.

A final testing after the long hours testing and aging will be done before the packing, to ensure nothing in wrong and well-working in customer's end.

How to order samples?

1,Samples are available at your costs;

2,You tell us which items, color and quantity you want, 5pcs as MOQ;

3,We will issue a Performa invoice for the samples order;

4,Production will go, if we do not have the stocks, after your payment by TT /Western Union;

5.Lead time would be about 7-12days;

6,Samples will be sent out by DHL or UPS, as you like.

Our terms

1.Our Prices are onthe basis of EX-W, Shenzhen;

2.Payment by TT/Western Union, 30% deposit and balance before shipment, if orders is large;

3.Delivery by UPSor DHL, airline or ship if large cargos;

4.Lead time is8-15days, more or less;

5.Samples areavailable at your costs, 5pcs each as MOQ;

6. Two years Warranty.
