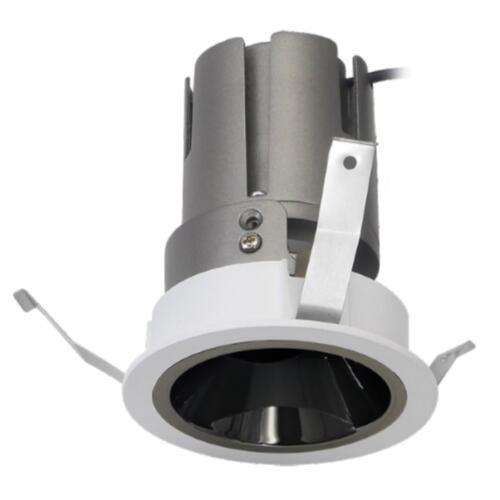

10W 15W 20W COB LED downlight module

The Series Anti Glare Downlight is specifically designed with deep lighting source and reflector, to reduce glare and provide comfortable lighting in Hotels, restaurents, Hospitals, shops, Meeting rooms, Offices, Buildings, Schools and so on. 10W 15W 20W COB LED downlight module with 100mm coutout are nice replacements to your exsiting downlights with CFL or halogens, with Ra80/90/97 USA Cree or Osram COB LED.
2700K, 3000K, 4000K, 5000K and 6000K, for your options
Adjustable downlight module

1. Die casting aluminum housing and heat disspition;
2. COB LED as lighting source, LESS Loss of light refraction and soft illumination;
3. Cree COB LED is duriable and high output;
4. Name LED driver with high quality;
5. Special designed reflector leads to similar brightness to halogens;
6. 4000K and 5000K are popular for shops while 2700K is asked more for restaurants;

Square trim is also available as well as round


Cree/Osram COB LED as lighting source, LESS Loss of light refraction and soft illumination

Full options with different trims and reflector


Item | 10W 15W 20W COB LED downlight module |
Power Consumption | 10W | 15W | 20W |
Dimension | 155*132mm | 155*132mm | 155*132mm |
Cutout | 100mm cutout | 100mm cutout | 100mm cutout |
Lighting Source | Osram or Cree | Osram or Cree | Osram or Cree |
Input | 220V- 240V AC | 220V- 240V AC | 220V- 240V AC |
Luminous flux | 800LM | 1200LM | 1600LM |
Luminous Efficiency | >80LM/W | >80LM/W | >80LM/W |
CRI | Ra80, Ra90 | Ra80, Ra90 | Ra80, Ra90 |
View Angel | 15°, 24°, 38° | 15°, 24°, 38° | 15°, 24°, 38° |
Lumen Attenuation 1000hrs | <0.5% | <0.5% | <0.5% |
Life Span | 30,000hours | 30,000hours | 30,000hours |
The LED Downlight is mostly installed into a hollow opening in a ceiling as wall washer.
